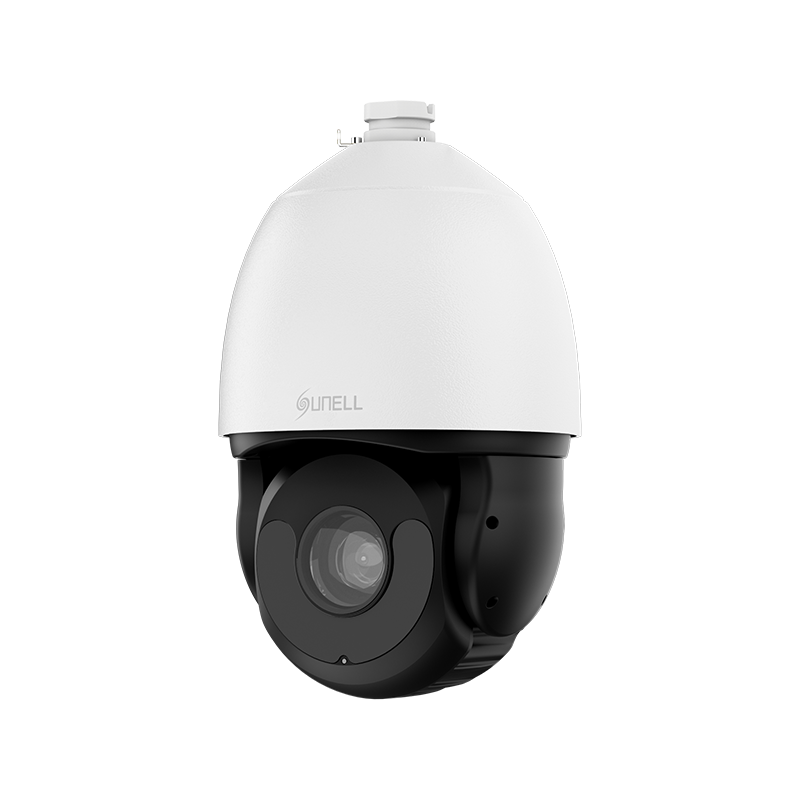

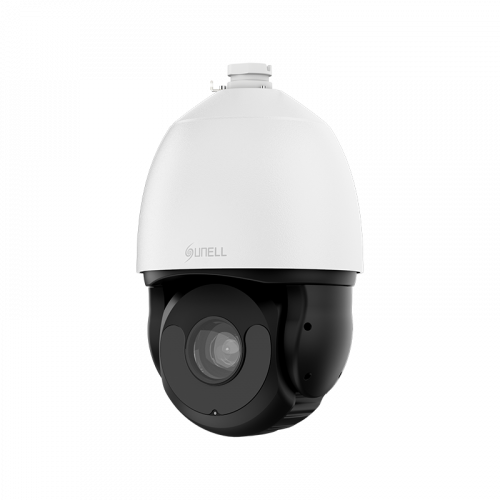

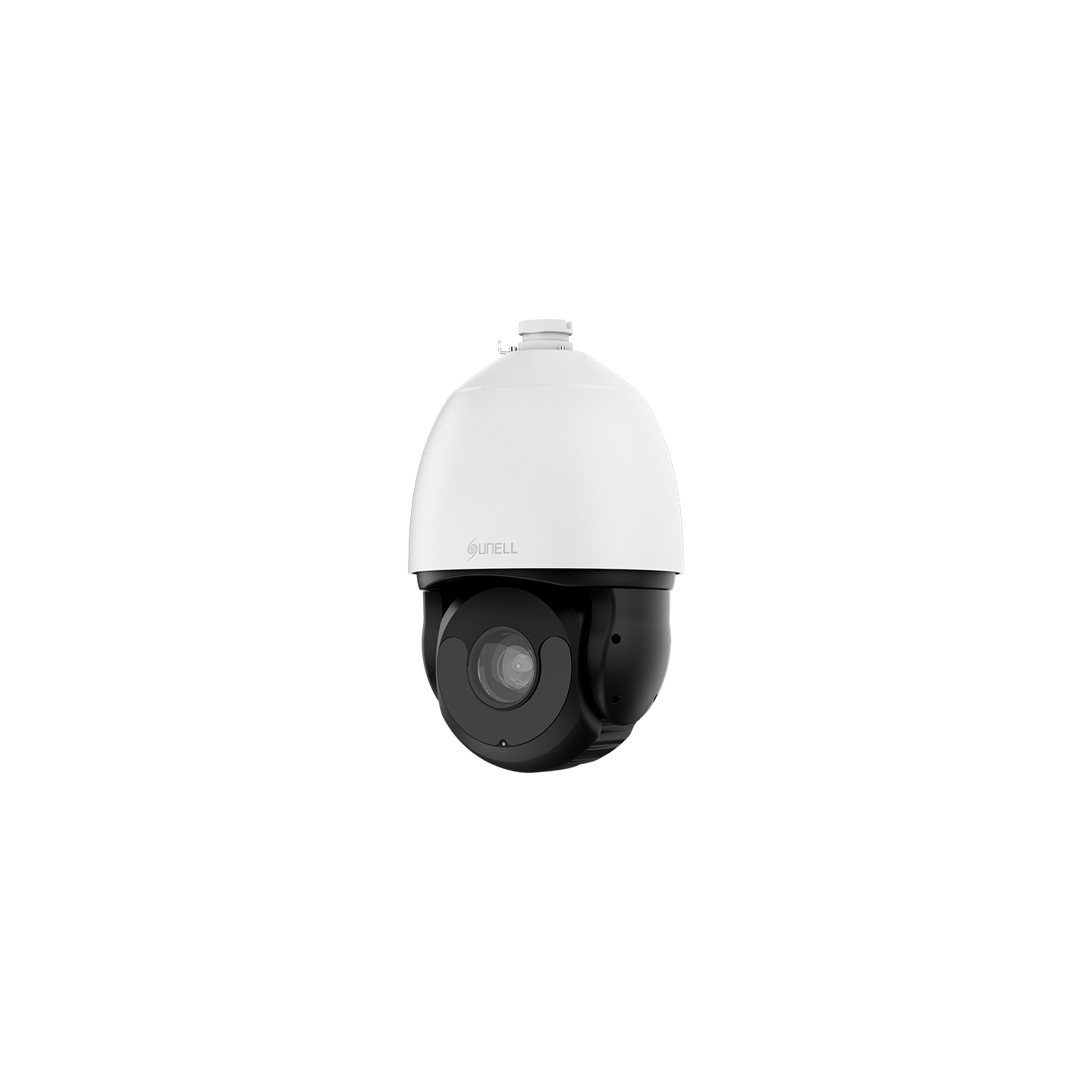

SUNELL SN-IPS8655VDL-Z30

Camera

Image Sensor

1/2.8” Progressive Scan CMOS

Max. Resolution

2592(H) × 1944(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/20,000s

Min. illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Day & Night

Auto (ICR)

Wide Dynamic Range

True WDR

Lens

Focal Length

5.3 to 159 mm

Max. Aperture

F1.6 to F4.4

Angle of View

H: 56.8° to 2.6°, V: 42.7° to 2.0°

Optical Zoom

30x

Digital Zoom

16x

Iris Control

Auto/Manual

Focus Control

Auto/Manual/Semi-automatic

DORI Distance

Detection

103 to 3,090 m (337.93 to 10,137.8 ft)

Observe

41.2 to 1,236 m (135.17 to 4,055.1 ft)

Recognize

20.6 to 618 m (67.59 to 2,027.6 ft)

Identify

10.3 to 309 m (33.79 to 1,013.8 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

Illuminator

Illuminator Type

IR + Laser

Illumination Distance

Up to 400 m (1,312.34 ft)

Illumination On/Off Control

Auto/Manual

IR wavelength

850 nm

Intelligent Analytics

Multi-Object Detection

Support face, human, vehicle detection and capture

Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic.

Smoke and Flame Detection

Support

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection

(support the accurate detection of vehicle and human)

People Counting

Support

Smart Tracking

Support

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: -10° to +90° (auto-flip)

Pan Speed

Pan speed: 0.1° to 300°/s, preset speed: 300°/s

Tilt Speed

Tilt speed: 0.1° to 300°/s, preset speed: 300°/s

Presets

400

Patrol Scan

6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

Power-Off Memory

Support

3D Positioning

Support

PTZ Status Display

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Video and Audio

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 kbps to 12 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Privacy Masking

Support 40 zones, mask color configurable

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch Input, 1ch Output

Alarm Interface

7ch Input, 2ch Output

RS-485

Support

BNC Interface

1 BNC (CVBS output)

SD Card Slot

Built-in, up to 1 TB

General

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

24 VAC / 36 VDC / PoE++ (802.3bt),

Standard Equipped: 36VDC

Power Consumption

Less than 45 W

Operating Temperature

-40°C to 60°C (-40°F to 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP66, IK10

Certifications

CE-EMC

- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4

CE-LVD

- EN IEC 62368-1

FCC 47 CFR Part 15 Subpart B

Material

Metal

Dimensions

φ226.1 × 362.8 mm (φ8.9 × 14.28 inch)

Net Weight

5.5 kg (12.13 lb)
