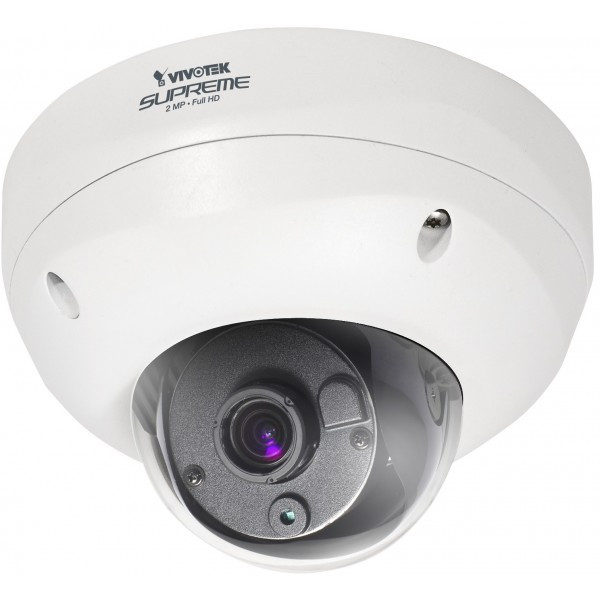

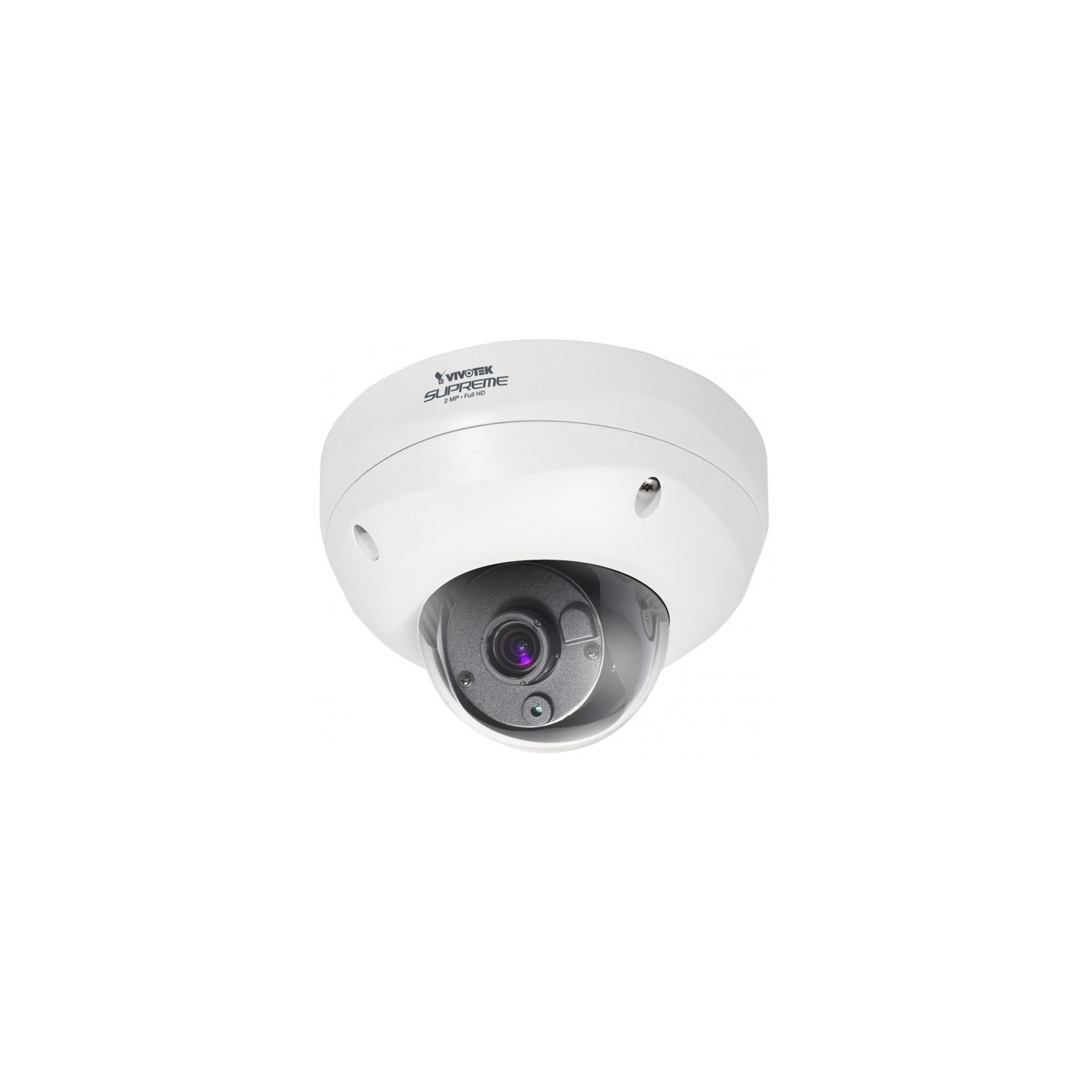

VIVOTEK FD8362

Lente

f=3~9 mm

F 1.2 (wide)

F 2.1 (tele)

Auto iris

Board lens

Removable IR-cut filter for day & night function

Remote Focus

Campo de visión

31.7° ~ 93.0° (horizontal)

23.8° ~ 68.4° (vertical)

39.6° ~ 118.9° (diagonal)

Tiempo de obturación

1/5 ~ 1/32,000 sec.

Sensor de imágen

1/2.7" progressive scan CMOS in 1920x1080 Resolution

Iluminación mínima

0.08 Lux @ F1.2 ( Color )

0.001 Lux @ F1.2 ( B/W )

Video

Compression: H.264, MPEG-4 & MJPEG

Streaming:

Simultaneous multiple streams

H.264 streaming over UDP, TCP, HTTP or HTTPS

H.264/MPEG-4 multicast streaming

MPEG-4 streaming over UDP, TCP, HTTP or HTTPS

MJPEG streaming over HTTP or HTTPS

Supports activity adaptive streaming for dynamic frame rate control

Supports video cropping for bandwidth efficiency

Supports ePTZ for data efficiency

Supports 3GPP mobile surveillance

Frame rates:

H.264: Up to 30 fps at 1920x1080

MPEG-4: Up to 30 fps at 1920x1080

MJPEG: Up to 30 fps at 1920x1080

Interface:

Audio/Video output

NTSC/PAL video output switch

Ajustes de imágen

Adjustable image size, quality, and bit rate

Time stamp and text caption overlay

Flip & mirror

Configurable brightness, contrast, saturation, sharpness, white balance and exposure control

AGC AWB AES

Automatic, manual or scheduled day/night mode

Supports privacy masks

BLC (Backlight compensation)

WDR enhanced

Audio

Compression

GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps

MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps

G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law

Interface:

External microphone input

Audio output

Supports two-way audio

Supports audio mute

Red

10/100 Mbps Ethernet, RJ-45

ONVIF support

Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X

Alarma y gestión de eventos

Triple-window video motion detection

1 D/I & 1 D/O for external sensor and alarm

Event notification using HTTP, SMTP, FTP

Local recording of MP4 files

Tamper Detection

Almacenamiento a bordo

MicroSD/SDHC card slot

Stores snapshots and video clips

Seguridad

Multi-level user access with password protection

IP address filtering

HTTPS encrypted data transmission

802.1X port-based authentication for network protection

Usuarios

Live viewing for up to 10 clients

Dimensiones

Ø: 173mm x 115 mm

Peso

Net: 1296 g

Indicador LED

System power and status indicator

Potencia

12V DC

24V AC

802.3af Power-over-Ethernet (Class 3)

Power consumption:

DC 12V Max. 8.9W (with 400mA DO on)

AC 24V Max. 12.2W (with 400mA DO on)

PoE Max. 8.2W (with 200mA DO on)

Vivienda

Weather-proof IP66-rated housing

Vandal-proof IK10-rated metal housing

Aprobaciones

CE C-Tick FCC LVD VCCI UL

Entornos operativos

Temperature: 0 ~ 50 °C (32 ~ 122 °F)

Humidity: 90%

Viendo requisitos del sistema

OS: Microsoft Windows 7 / Vista / XP / 2000

Browser: Mozilla Firefox

Browser: Internet Explorer 7.x or above

VLC: 10.5 or above

QuickTime: 6.5 or above

Cell phone: 3GPP player

Real Player 10.5 or above

Gestion de instalación y mantenimiento

Camera angle adjustment:

Pan range: 350°

Tilt range: 80°

Rotate range: 350°

Installation Wizard 2

ST7501 32-channel recording software

Supports firmware upgrade

Aplicaciones

SDK disponible para el desarrollo de aplicaciones e integración de sistemas
