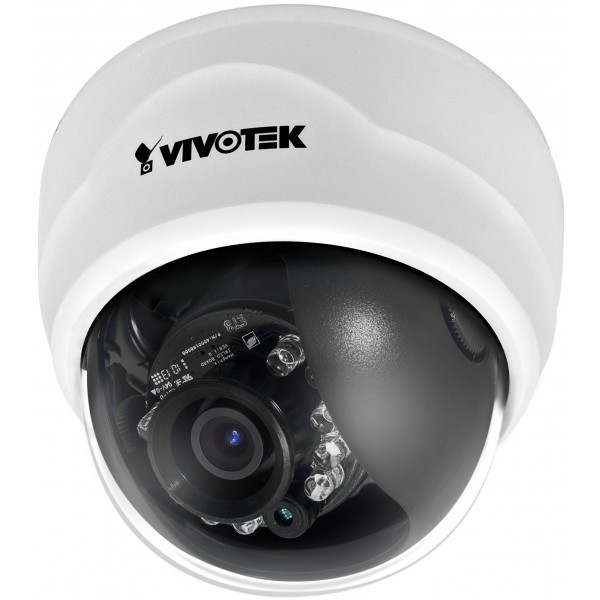

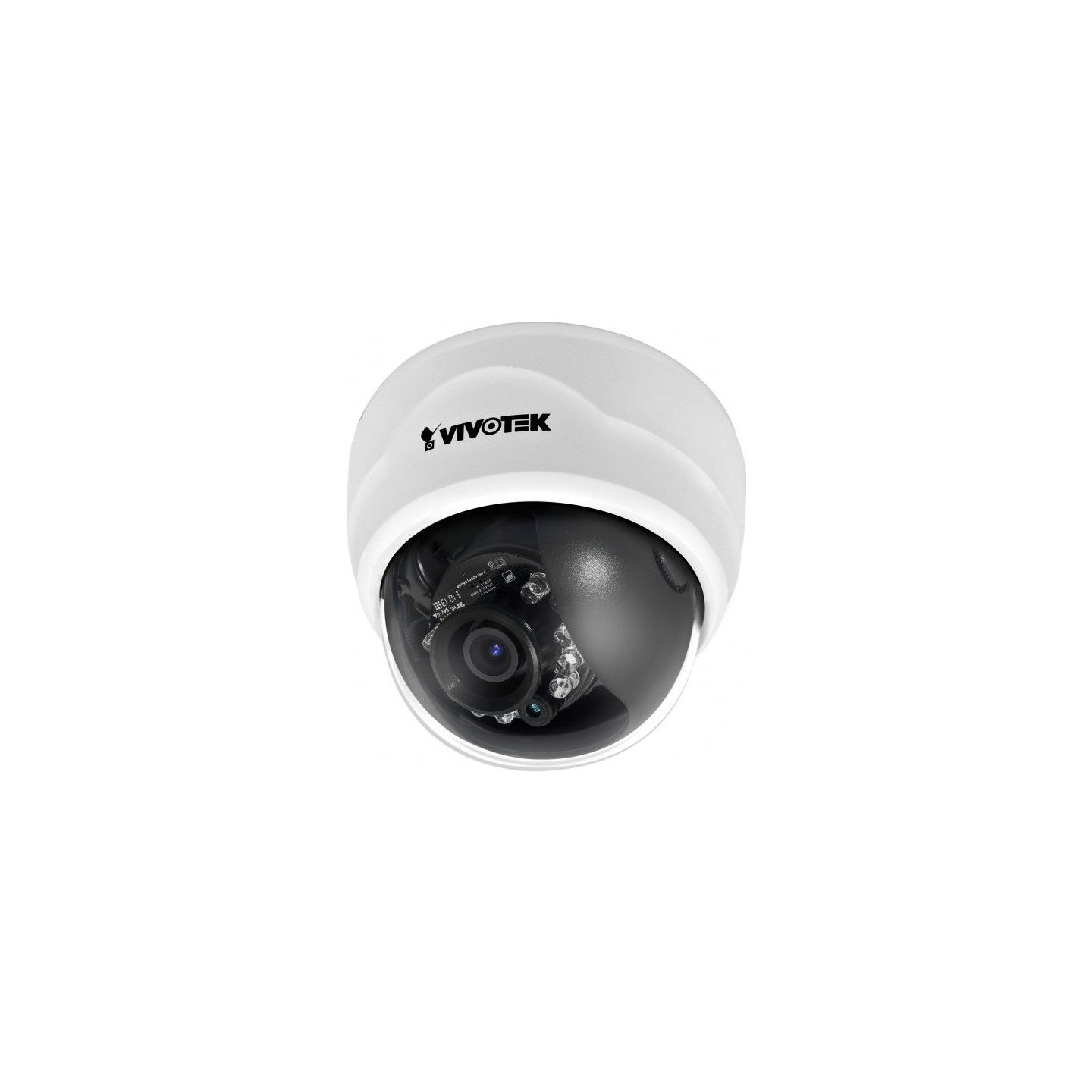

VIVOTEK FD8134

Lente

f=3.6 mm

F 1.8

Board lens

Fixed

Removable IR-cut filter for day & night function

Campo de visión

41° (vertical)

TIempo de obturación

1/5 ~ 1/25,000 sec.

Sensor de imágen

1/4" CMOS in 1280x800 Resolution

Iluminación minima

0 Lux / F1.8 ( IR LED on )

Iluminadores IR

IR LED*8 ( 850 nm )

Built-in IR illuminators, Effective up to 10 meters

Video

Compression: H.264, MPEG-4 & MJPEG

Streaming:

Simultaneous multiple streams

H.264 streaming over UDP, TCP, HTTP or HTTPS

H.264/MPEG-4 multicast streaming

MPEG-4 streaming over UDP, TCP, HTTP or HTTPS

MPEG-4 multicast streaming

MJPEG streaming over HTTP or HTTPS

Supports activity adaptive streaming for dynamic frame rate control

Supports 3GPP mobile surveillance

Frame rates:

H.264: Up to 30/25 fps at 1280x800

MPEG-4: Up to 30/25 fps at 1280x800

MJPEG: Up to 30/25 fps at 1280x800

Ajustes de imágen

Adjustable image size, quality, and bit rate

Time stamp and text caption overlay

Flip & mirror

Configurable brightness, contrast, saturation, sharpness, white balance and exposure control

AGC AWB AES

Automatic, manual or scheduled day/night mode

Supports privacy masks

BLC (Backlight compensation)

Red

10/100 Mbps Ethernet, RJ-45

ONVIF support

Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X

Alarme y gestión de eventos

Triple-window video motion detection

1 D/I for external sensor and alarm

Event notification using HTTP, SMTP, FTP

Local recording of MP4 files

Tamper Detection

Almacenamiento a bordo

MicroSD/SDHC card slot

Stores snapshots and video clips

Seguridad

Multi-level user access with password protection

IP address filtering

HTTPS encrypted data transmission

802.1X port-based authentication for network protection

Usuarios

Live viewing for up to 10 clients

Dimensiones

Ø: 110mm x 91 mm

Cable length: 480 mm

Cable diameter: Ø 7.8 mm;

Ring: Ø 24 mm

Peso

Net: 479 g

Indicador LED

System power and status indicator

System activity and network link indicator

Potencia

12V DC

Power consumption: Max. 4.5 W

802.3af Power-over-Ethernet (Class 2)

Aprobaciones

CE C-Tick FCC LVD VCCI

Ambiente de operación

Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)

Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)

Humidity: 90%

Viendo requisitos del sistema

OS: Microsoft Windows 7 / Vista / XP / 2000

Browser: Mozilla Firefox

Browser: Internet Explorer 7.x or above

VLC: 10.5 or above

QuickTime: 6.5 or above

Cell phone: 3GPP player

Real Player 10.5 or above

Gestión de instalación y mantenimiento

3-axis mechanism for flexible ceiling and wall mount installation

Camera angle adjustment:

Pan range: 350°

Tilt range: 72°

Rotate range: 350°

Installation Wizard 2

ST7501 32-channel recording software

Supports firmware upgrade

Aplicaciones

SDK disponible para desarrollo de aplicaciones e integración de sistema

Garantía

24 Meses
