Hardware

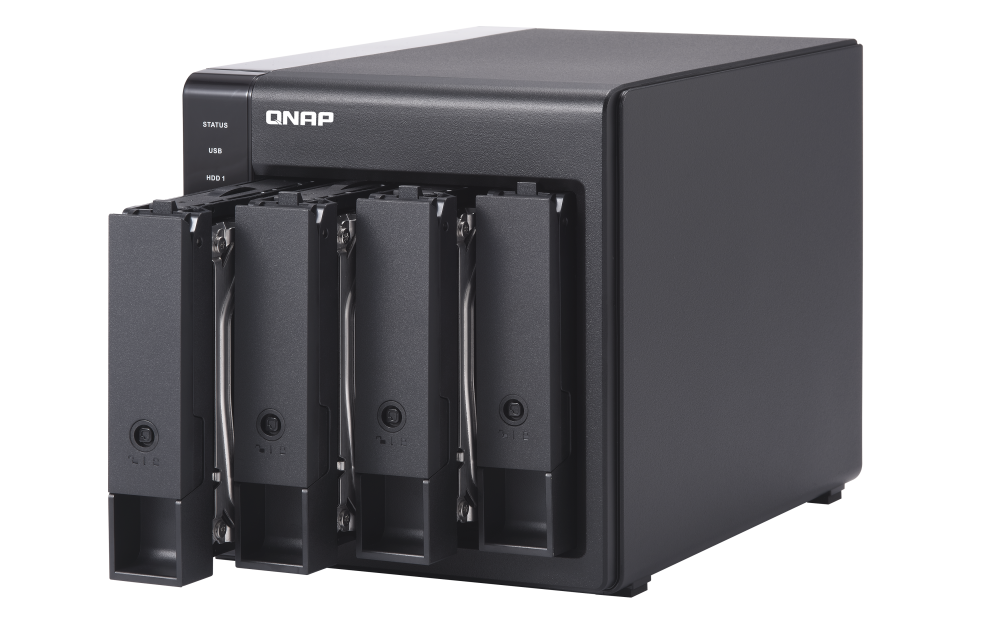

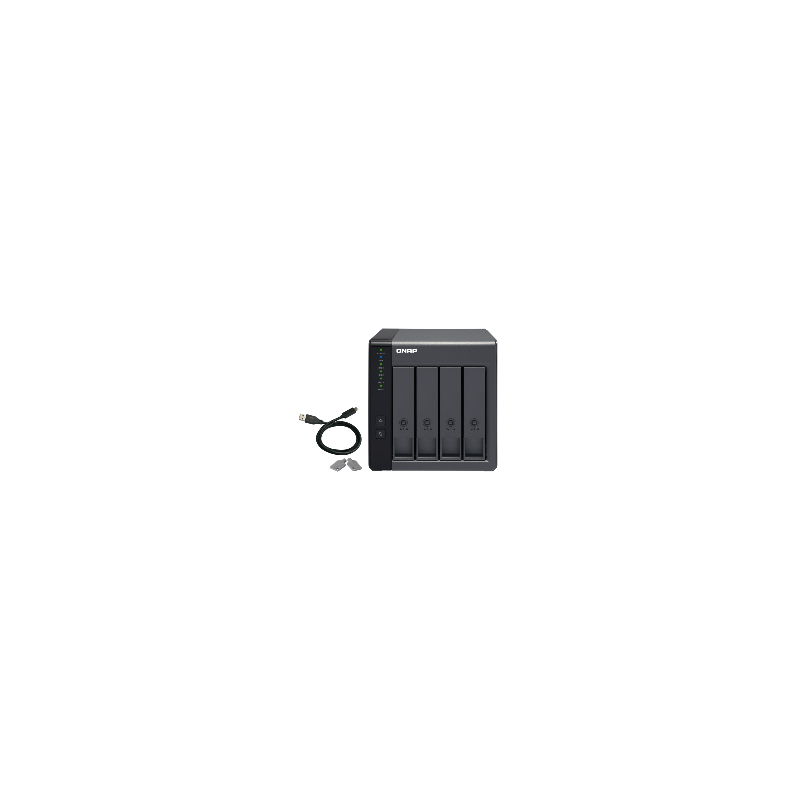

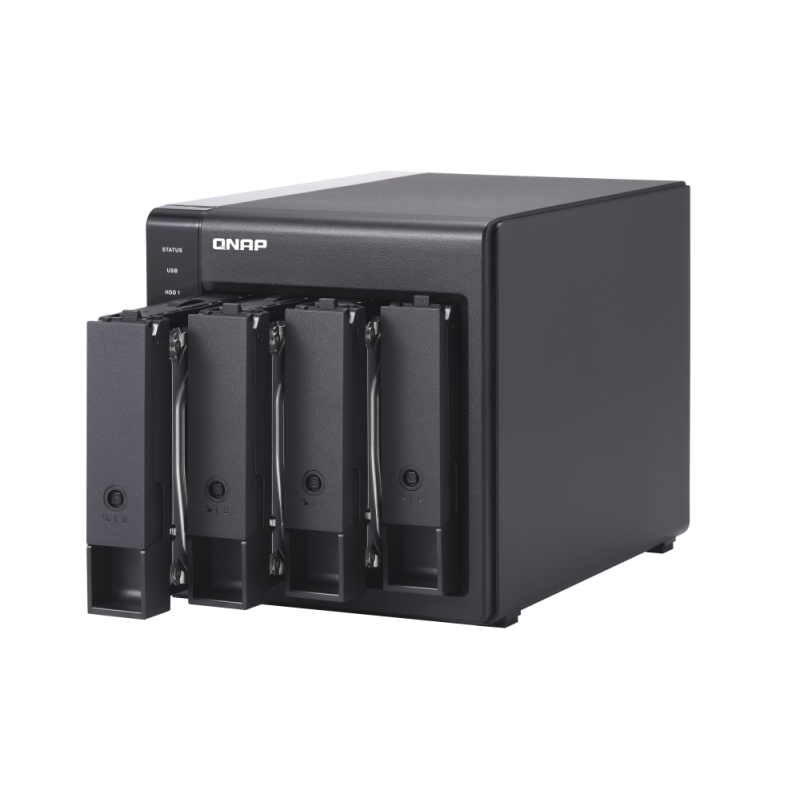

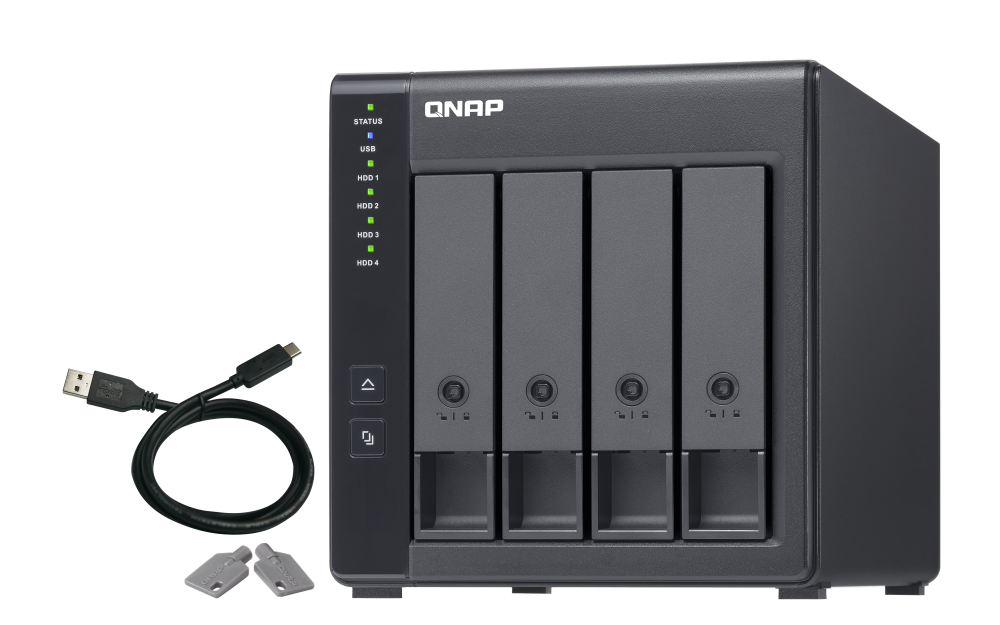

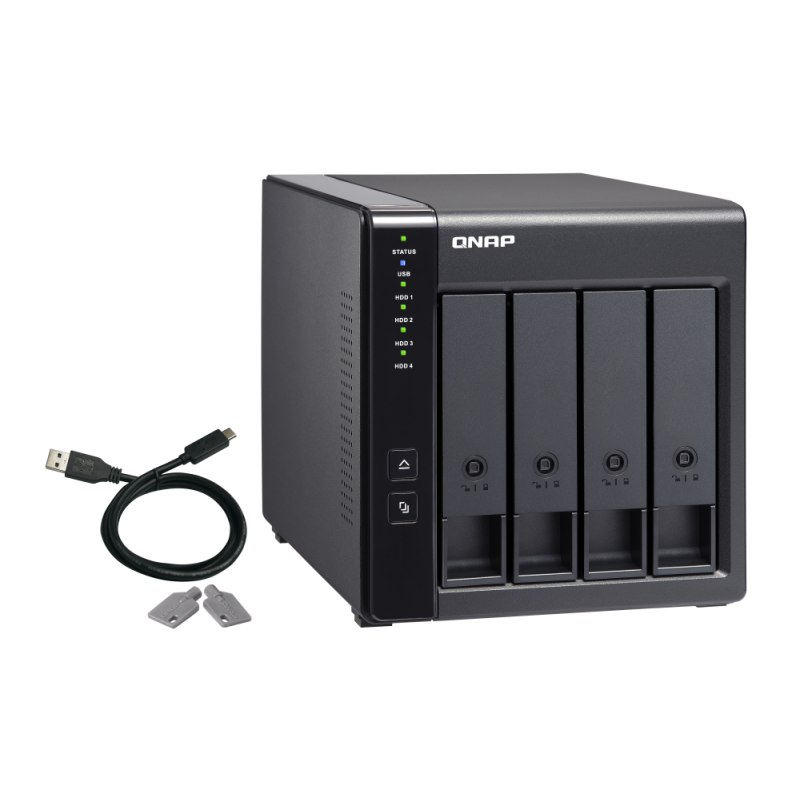

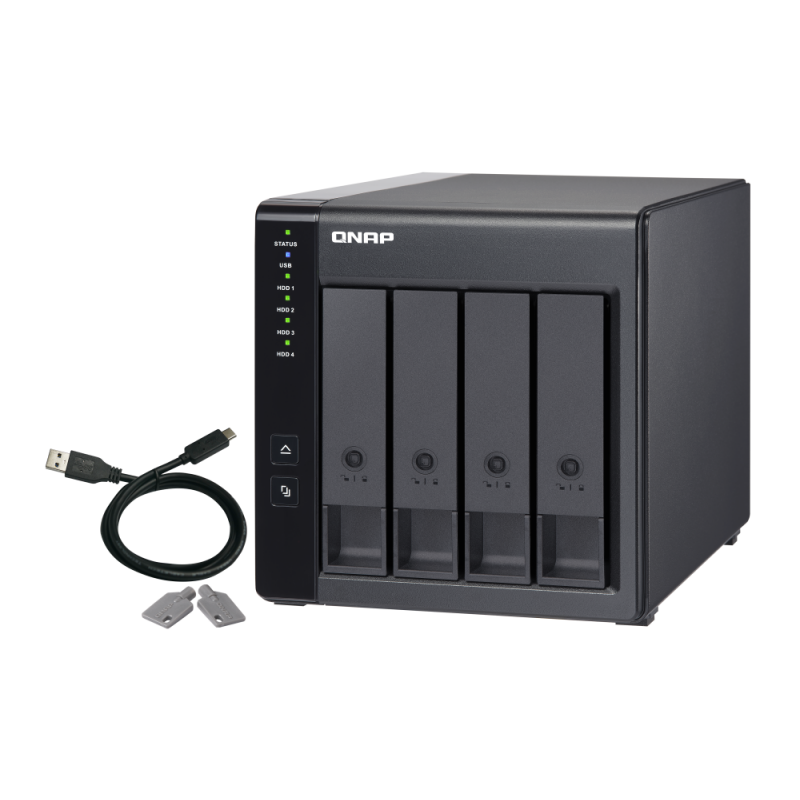

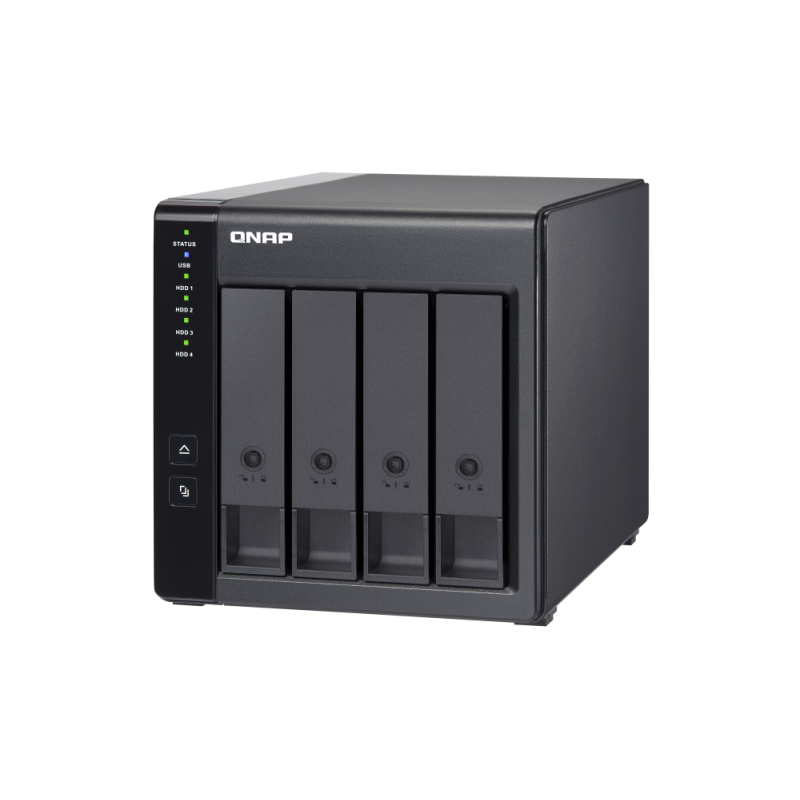

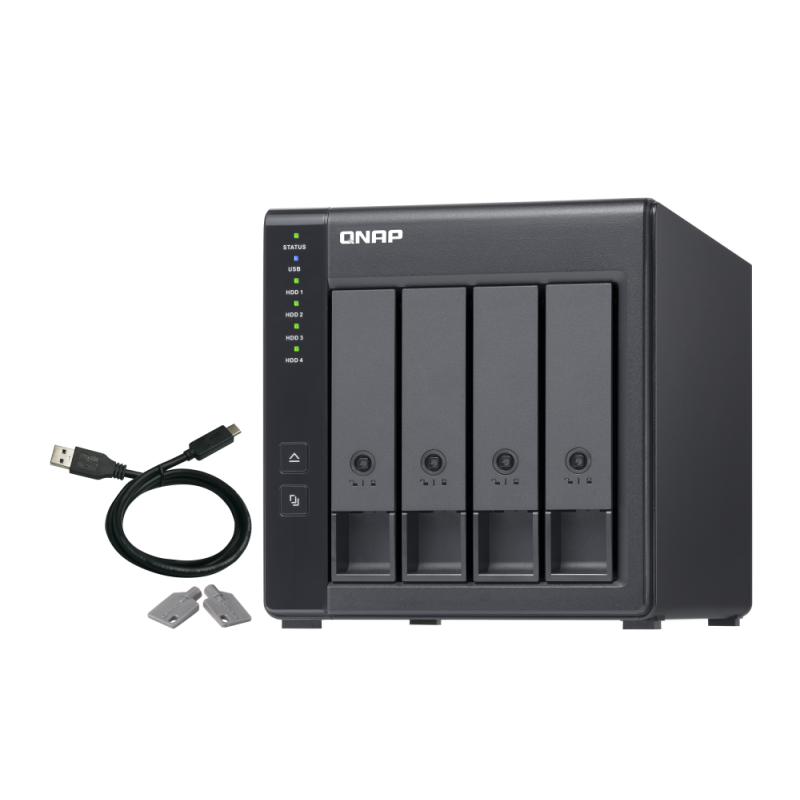

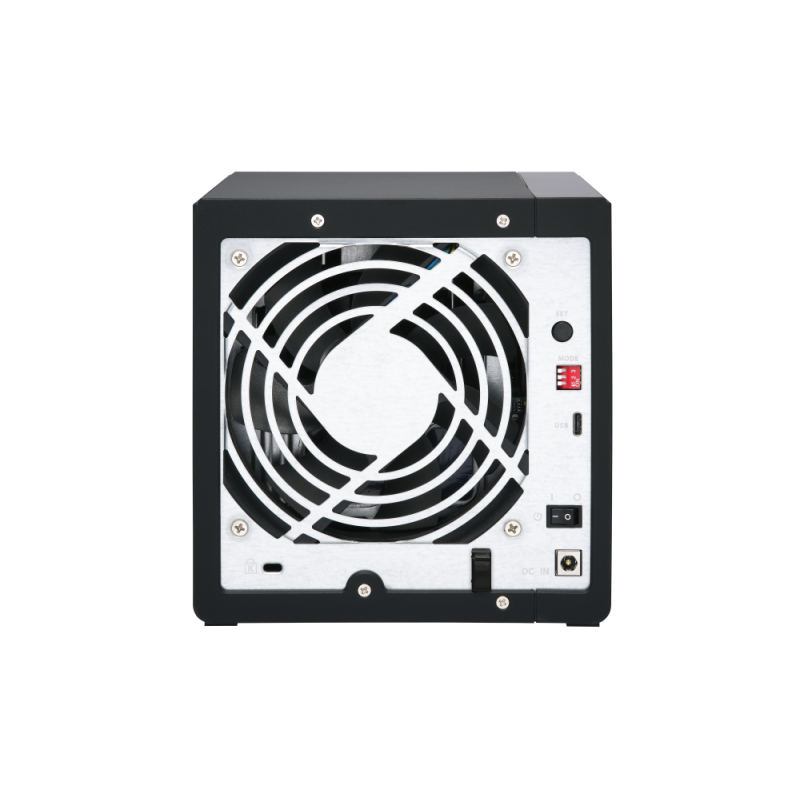

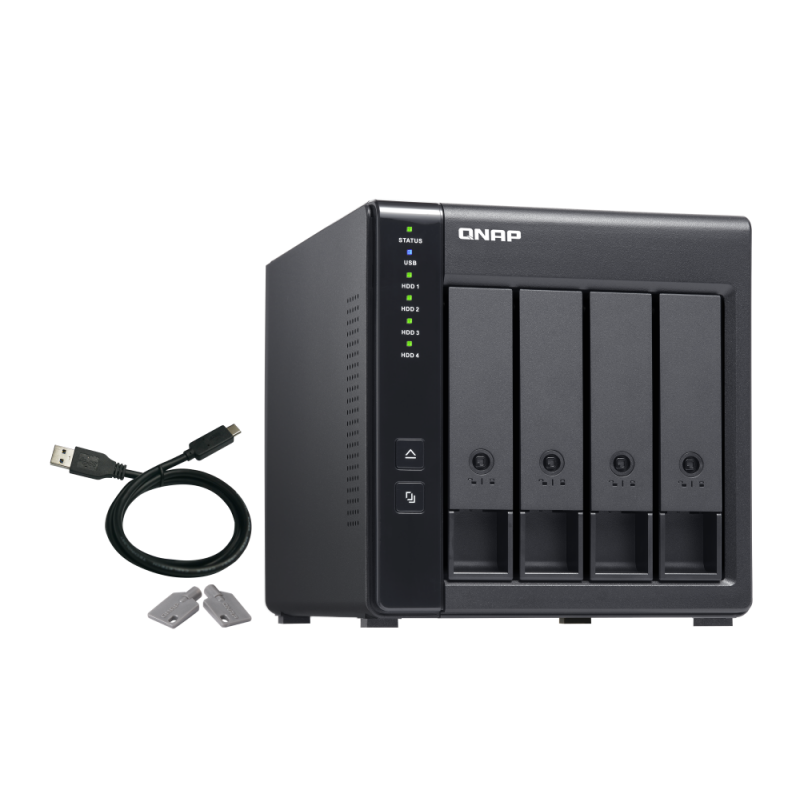

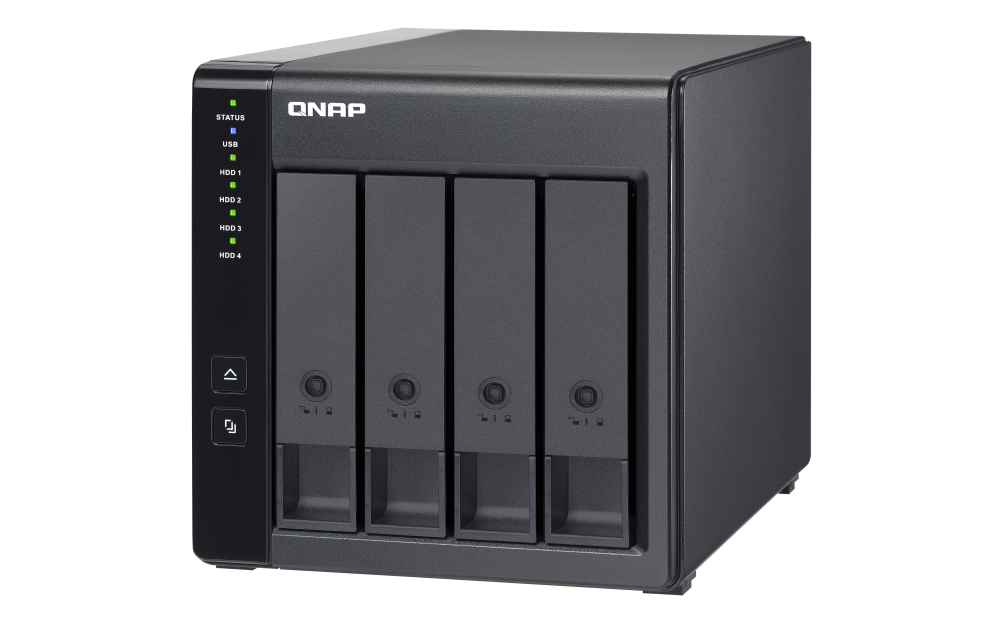

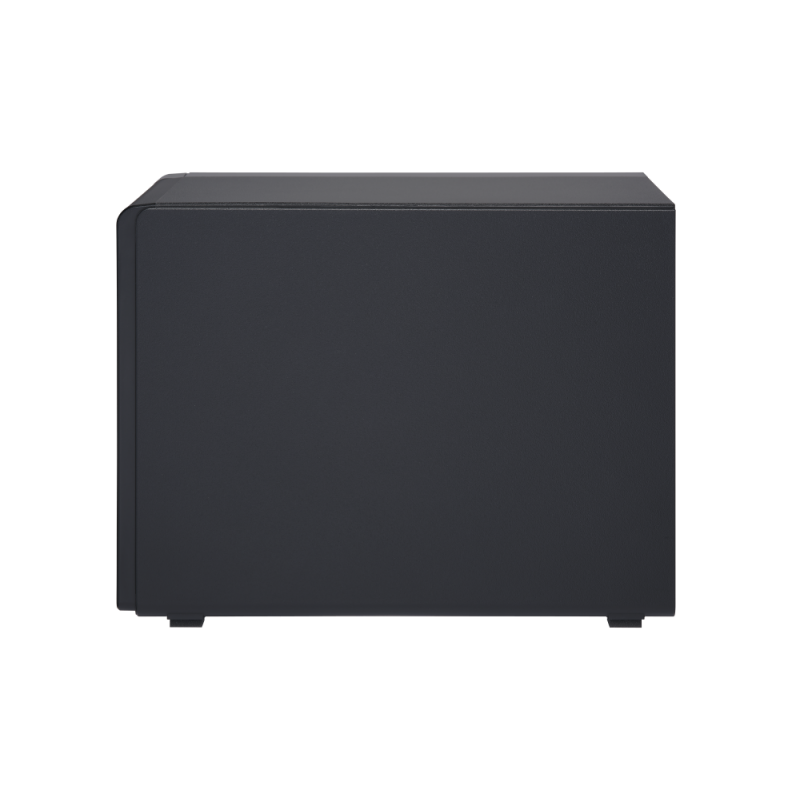

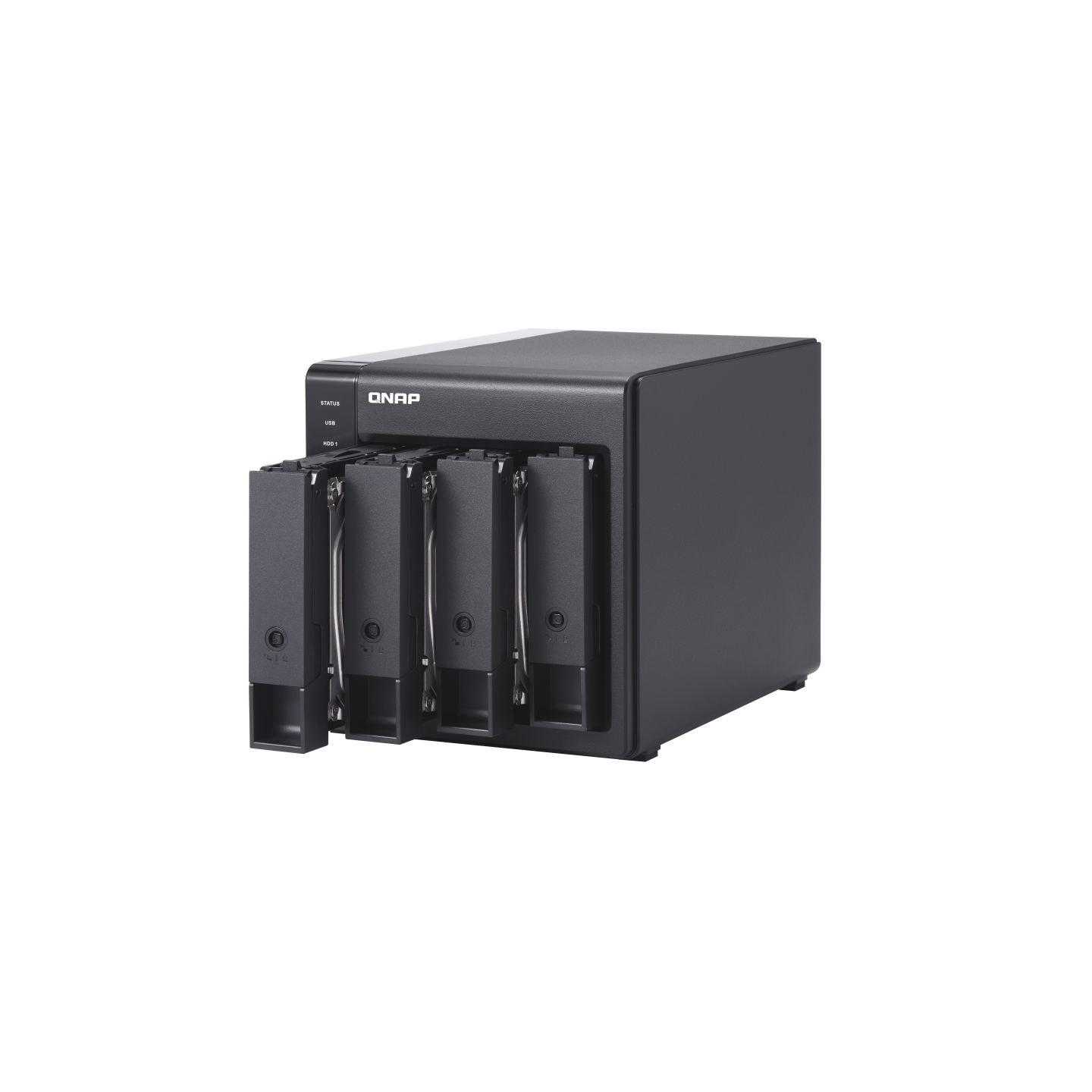

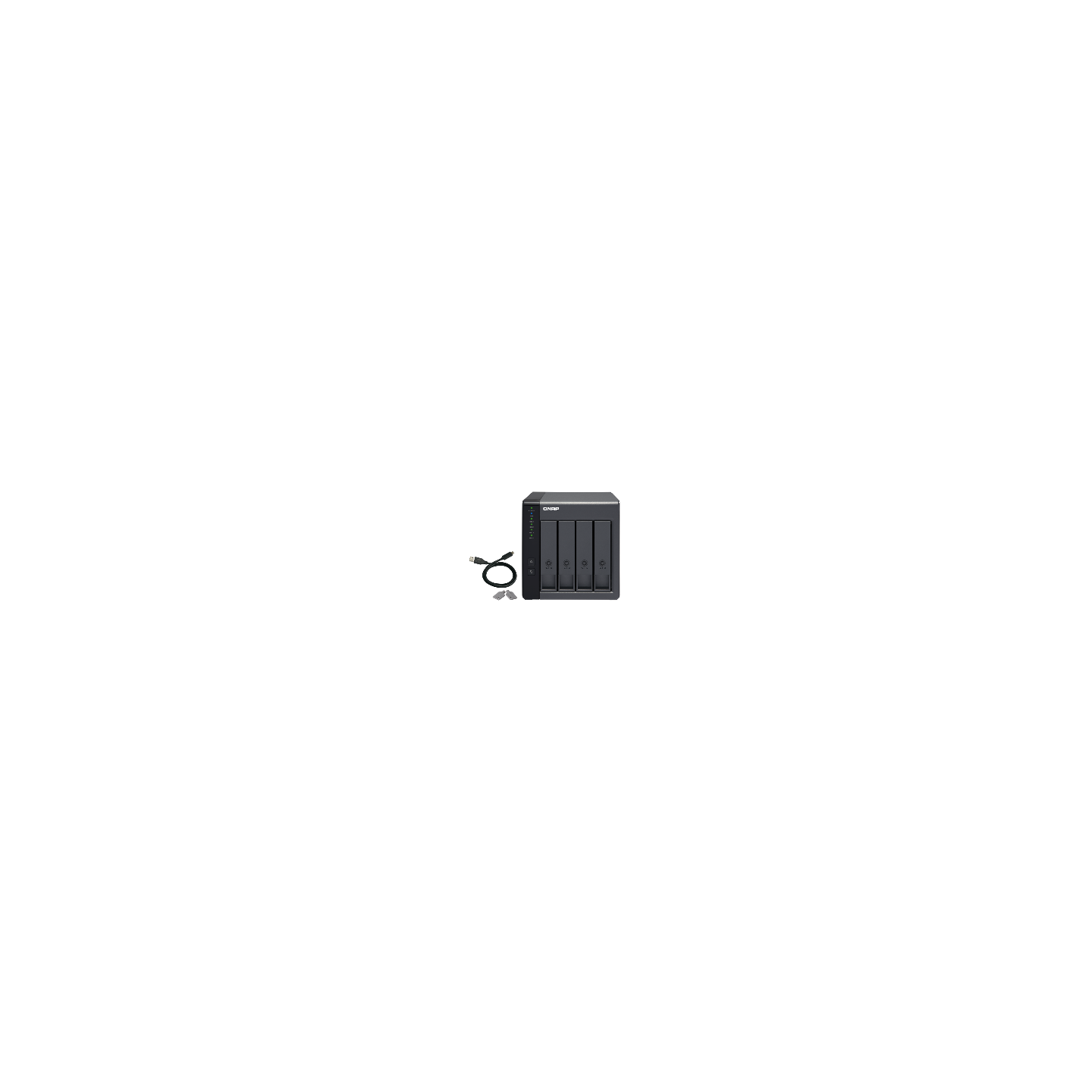

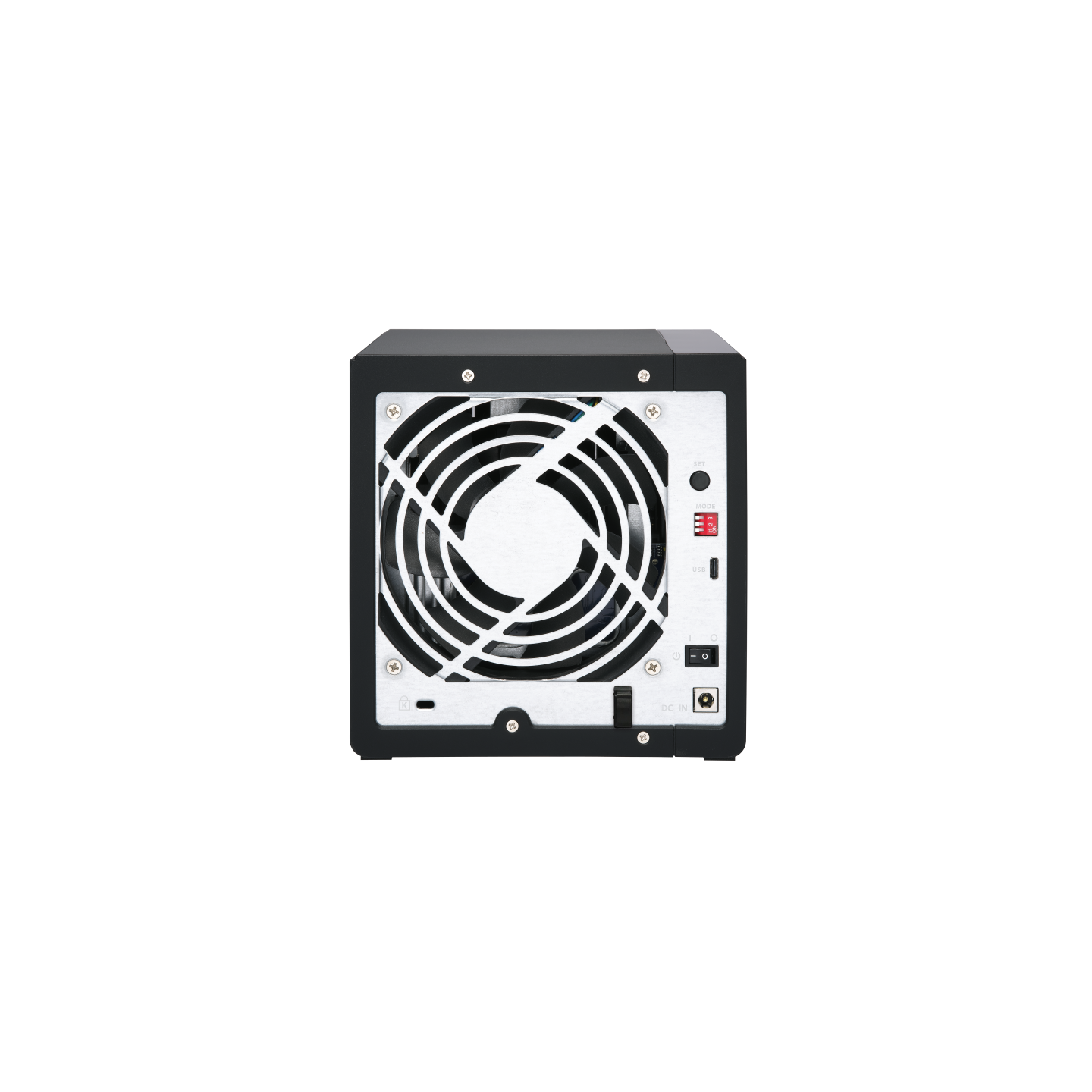

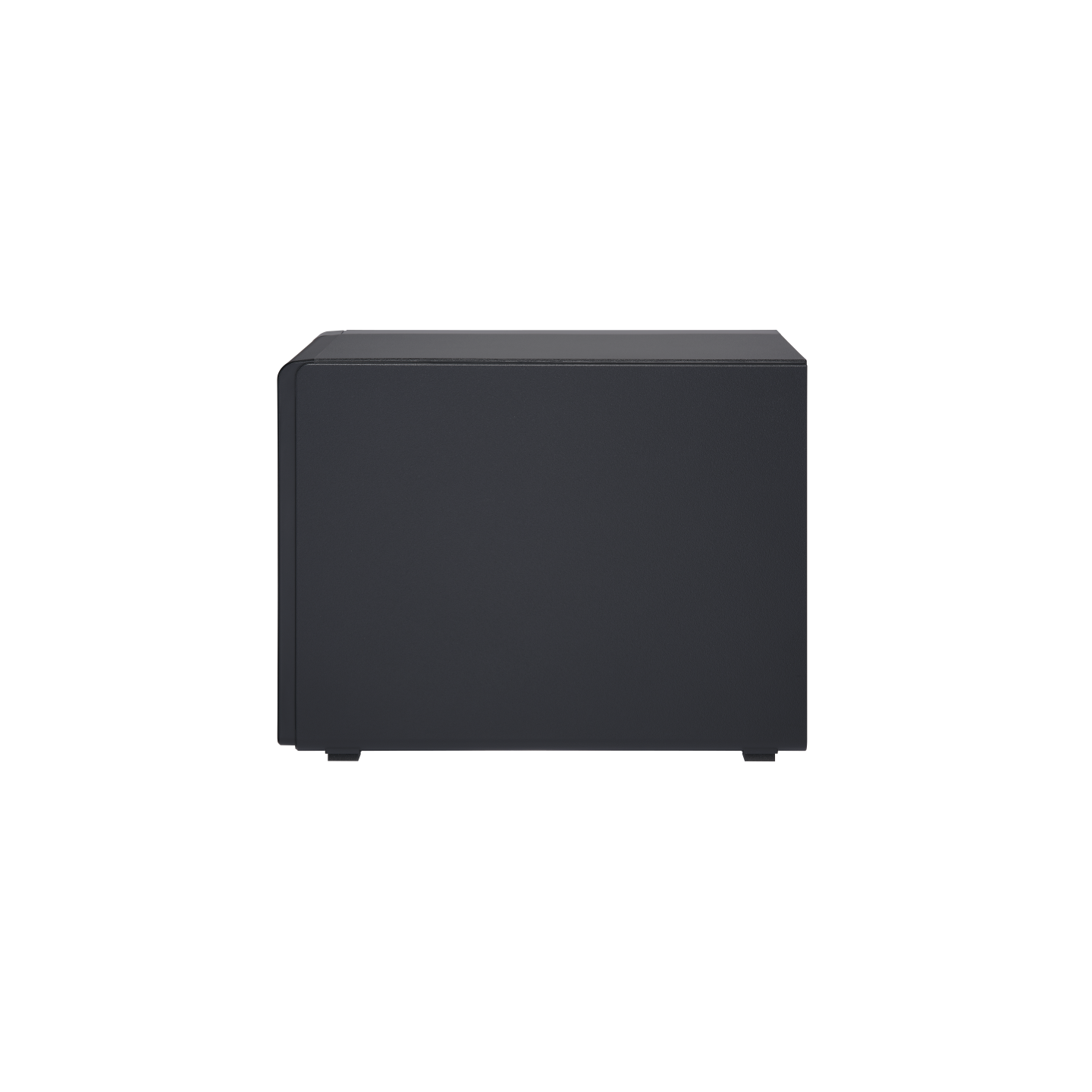

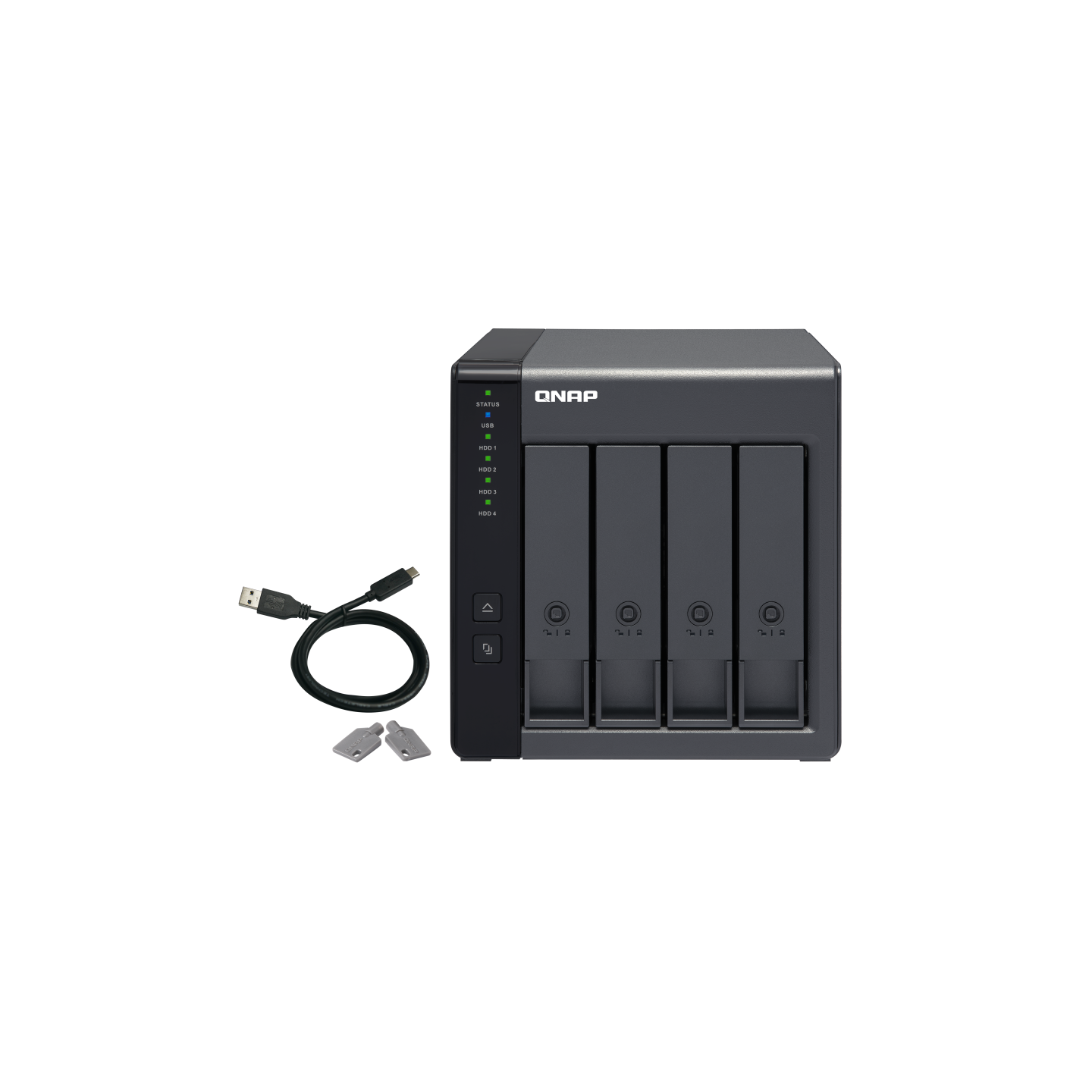

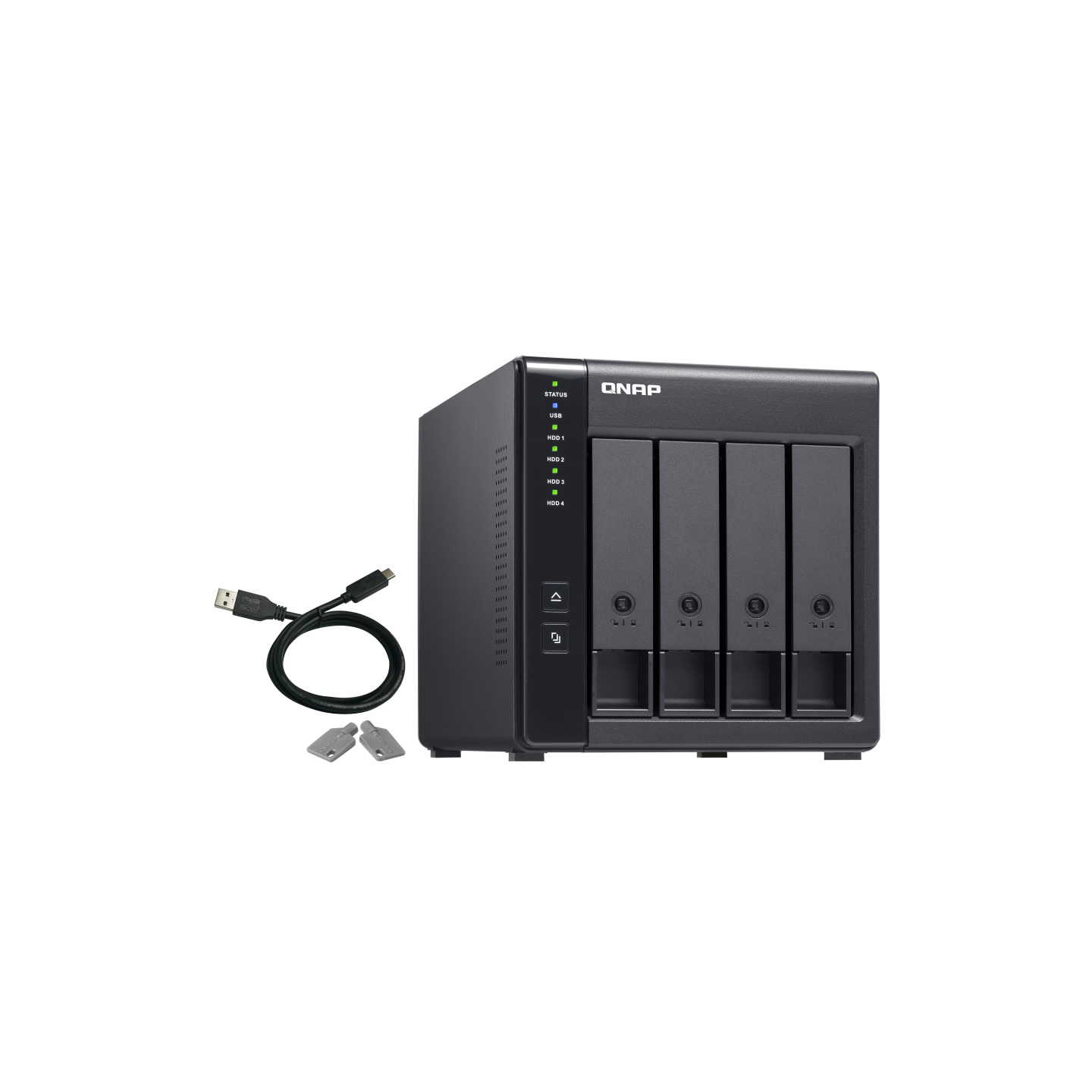

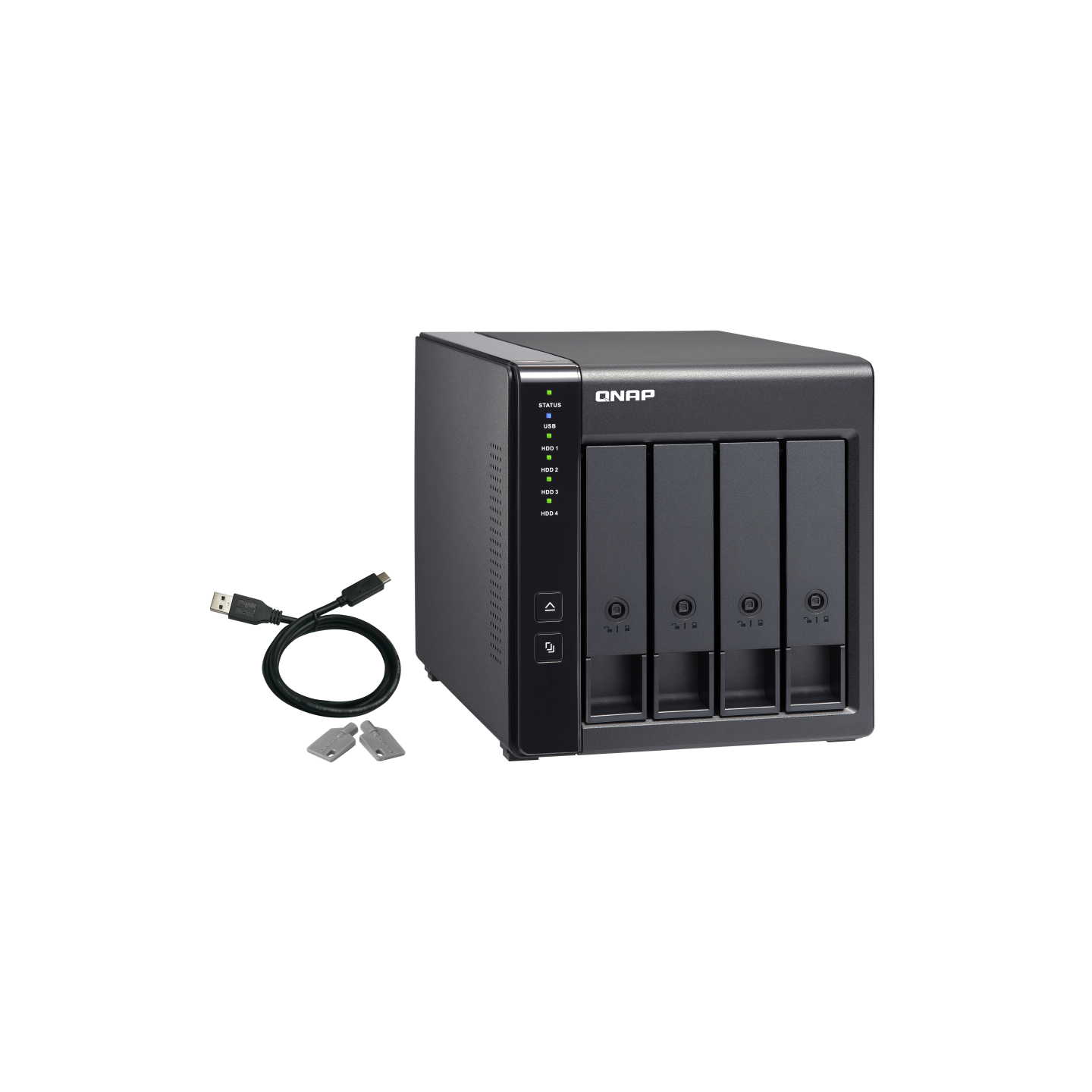

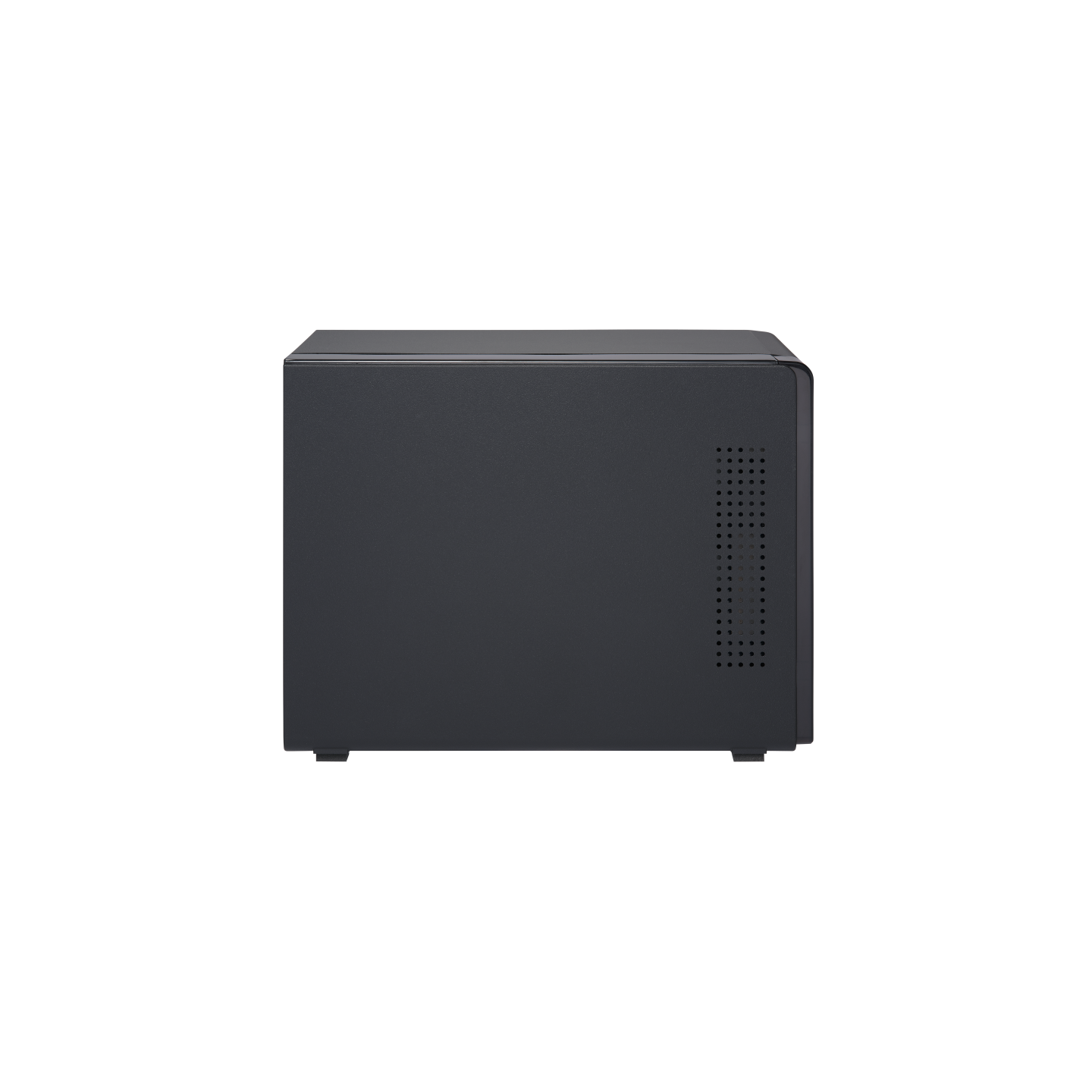

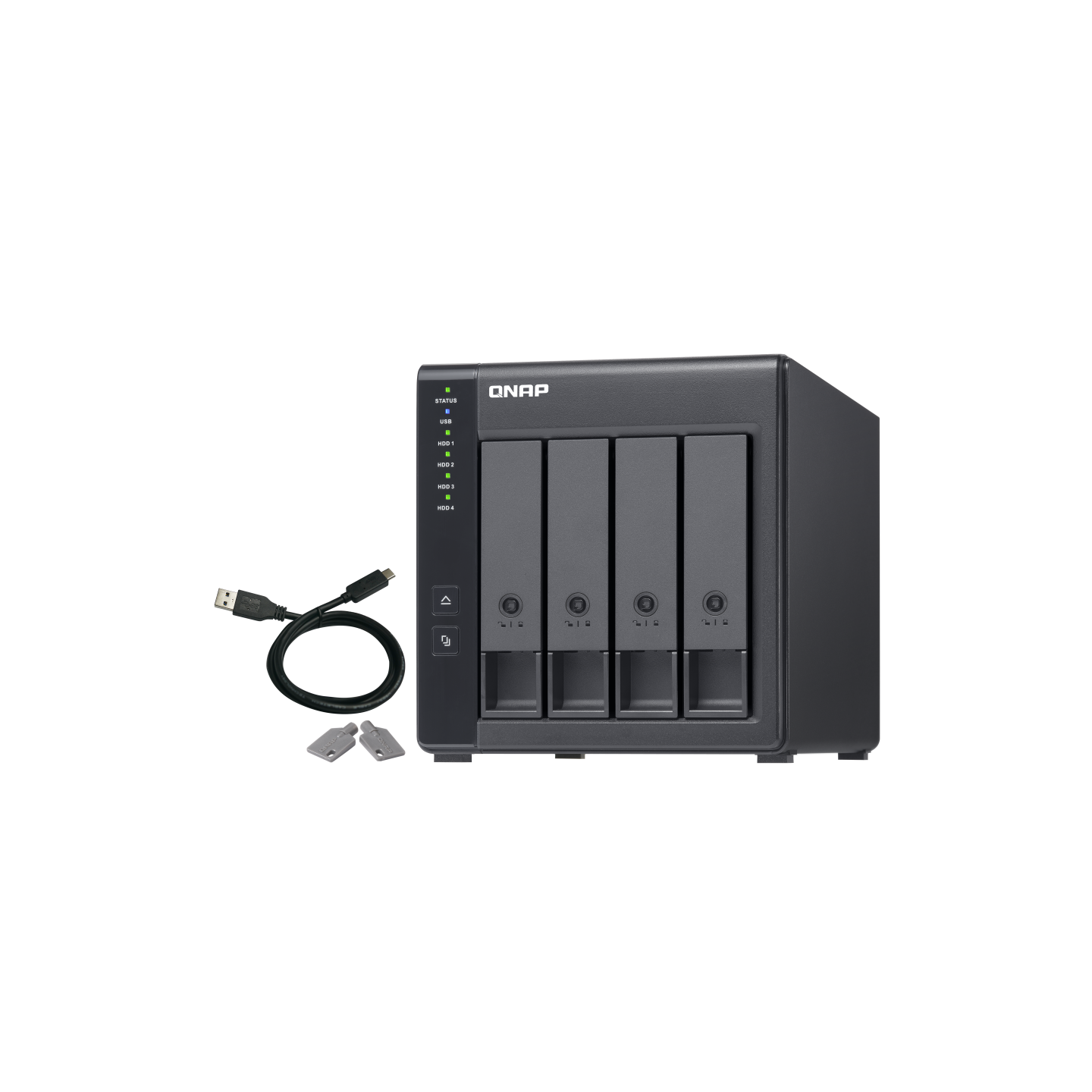

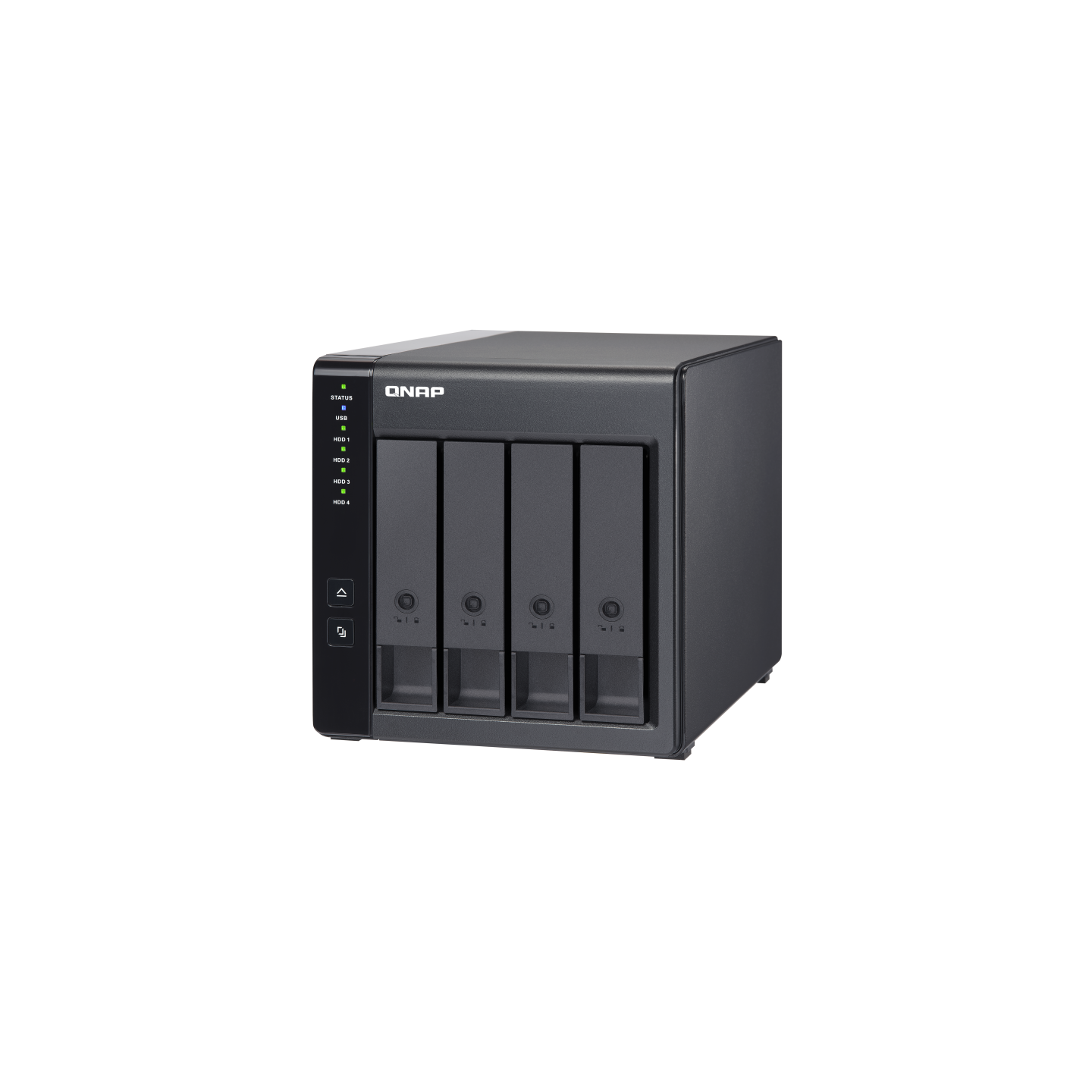

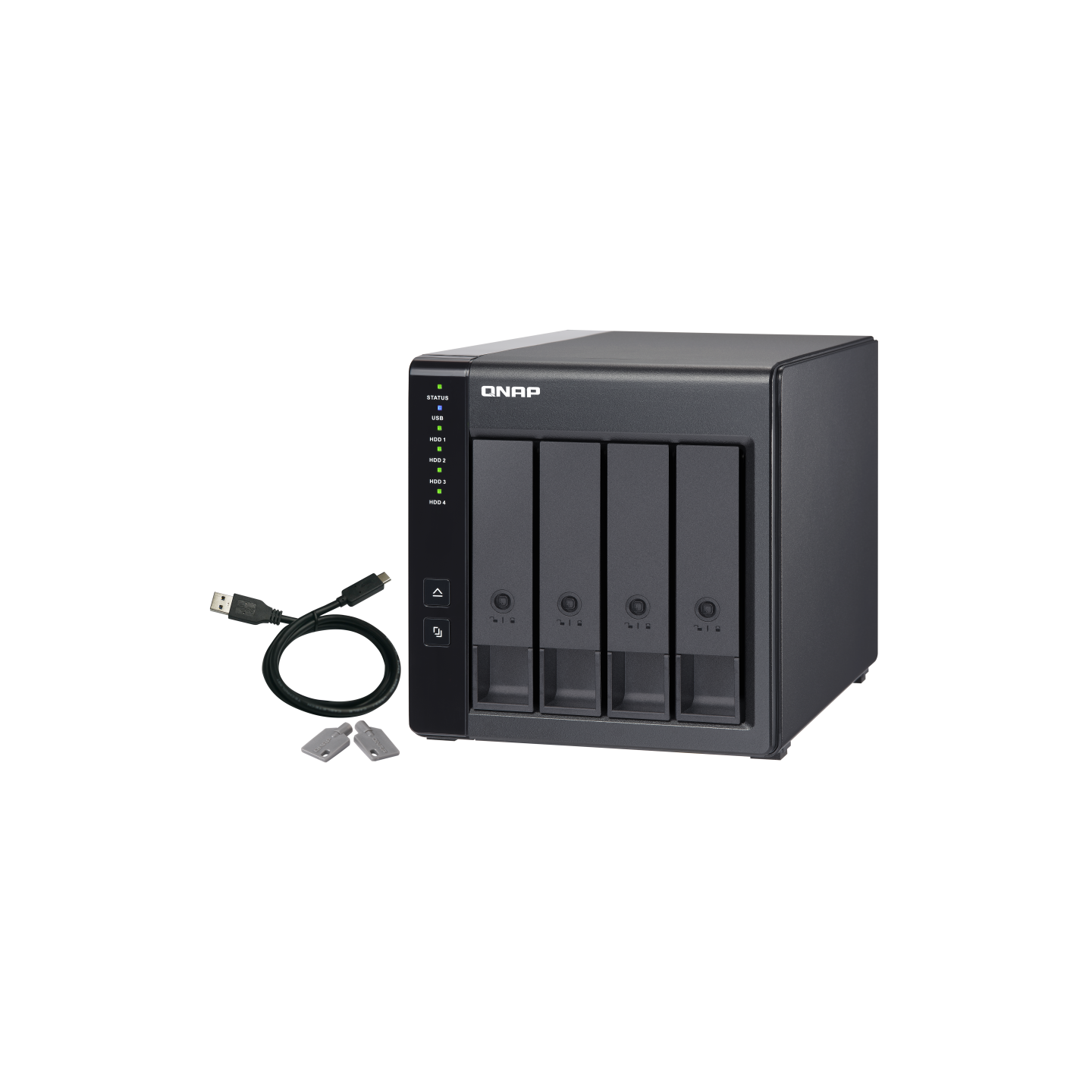

TR-004

JBOD Connection Interface USB

Main chip Microprocesador con RAID de hardware

Drive Bay 4 x 3.5 pulgadas

El sistema se envía sin HDD.

Para la lista de compatibilidad de HDD, por favor visite https://www.qnap.com/compatibility/

Drive Compatibility Ranura SATA de 3.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Ranura SATA de 2.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Ranura SATA de 2.5 pulgadas 3Gb/s (soporta SATA 6Gb/s discos duros de estado sólido con compatibilidad hacia atrás, rendimiento limitado a 3Gb/s)

Solo puede usar un tipo de disco (HDD o SSD) en un grupo RAID. No se admite la combinación de diferentes tipos de disco en un grupo RAID.

TR-004 no admite el QDA-A2AR/QDA-A2MAR.

Hot-swappable

USB 3.2 Gen 1 Port 1 puerto USB 3.2 Gen 1 Tipo-C (USB 3.2 Gen 1)

Form Factor Torre

Dimensions (HxWxD) 168.5 × 160.2 × 219 mm

Las dimensiones no incluyen la almohadilla del pie (la almohadilla del pie puede tener hasta 30mm / 1.18 pulgadas de altura dependiendo del modelo)

Weight (Net) 3.18 kg

Weight (Gross) 3.18 kg

Operating Temperature 0 - 40°C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5~95% HR sin condensación, bulbo húmedo: 27˚C (80.6˚F)

Power Supply Unit Adaptador mínimo de 60W (12VDC), 100-240VAC

Power Consumption: HDD Sleep Mode 4.17 W

Power Consumption: Operating Mode, Typical 18.21 W

Probado con unidades totalmente llenas.

Fan 1 x 120mm, 12VDC

System Warning Timbre

Kensington Security Slot

QTS / QuTS hero

Windows

Ubuntu

Mac

Used as Hardware RAID (DAS)

Standard Warranty 2

RAID 10

RAID 5+ Spare

RAID 5

RAID 1

RAID 0

JBOD

Single Disk

Software

System modes

Individual, JBOD, hardware RAID 0/1/5/10, Software CTRL (Software control mode is for use with QNAP NAS and Windows/macOS utility)

Features

RAID rebuild in RAID 1/5/10.

System, fan, and drive failure monitoring with LED and audio alerts.

System sleep during USB cable disconnection and host device hibernation* or shut down.

*Some hosts may not be supported.

The unused disk drives automatically become the hot spare ones for the RAID 1 and RAID 5 types.

Minimum operating system requirements

QNAP NAS: QTS 4.3.6 and later

Windows: Windows 8.1 and later

Mac: macOS X 10.11 and later

System fan

5-speed automatic fan control

Software utility

Windows/macOS: QNAP External RAID Manager

Supported File Systems

NAS storage (EXT4)External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT) Note: To use exFAT QNAP NAS you must purchase an exFAT driver license from License Center.

QTS Storage Management Features

General & Extenal Storage Mode

Overview device, disks, and RAID info and status

Support for disk’s S.M.A.R.T. monitoring

Location indication of blinking drive LEDs and sound beeping of enclosure

External RAID software configuration

RAID rebuild - Hot spare disk configuration

RAID recovery

Firmware update

Format partition

Erase partition and device

NAS Storage Mode

The storage pools and volumes in the expansion enclosures are configured via the QTS operating system.

Volume and LUN snapshots - Snapshot Manager

Snapshot Cloning - Snapshot Replica - Snapshot Vault

Support for Windows Previous Versions (CIFS/SMB)

Show less...

Software utility Features

QNAP External RAID Manager

Overview device, disks, and RAID info and status

Support for disk’s S.M.A.R.T. monitoring

Location indication of blinking drive LEDs and sound beeping of enclosure

Destop notification to inform abnormal status

External RAID software configuration

RAID rebuild - RAID rebuild speed customization

RAID recovery - Firmware update

Notification for new version of firmware and application

System event logs for troubleshooting

Export event logs to .csv file

Note: Actual performance may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, disk model and capacity.
