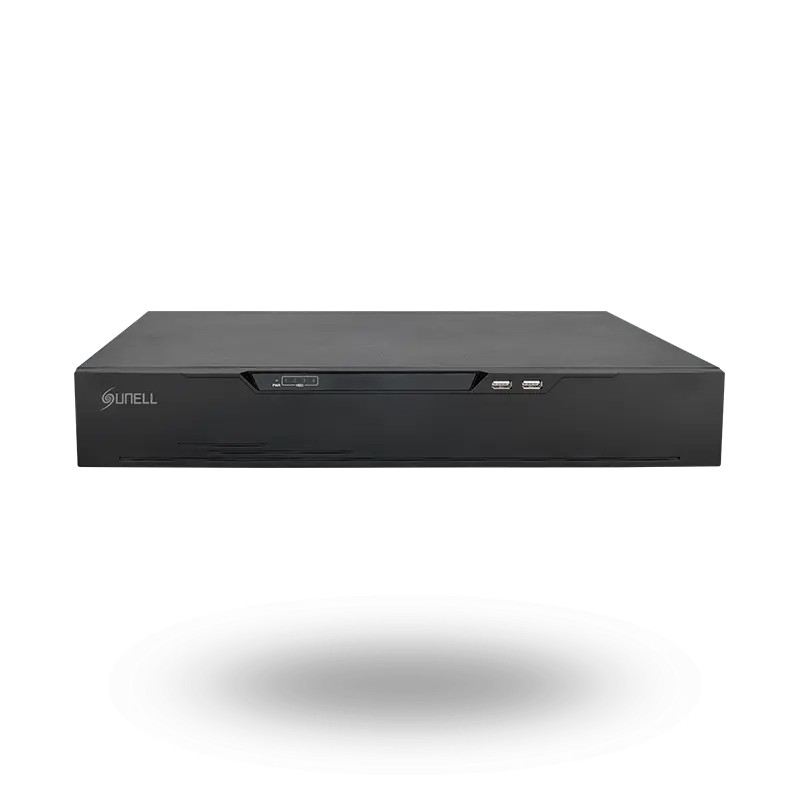

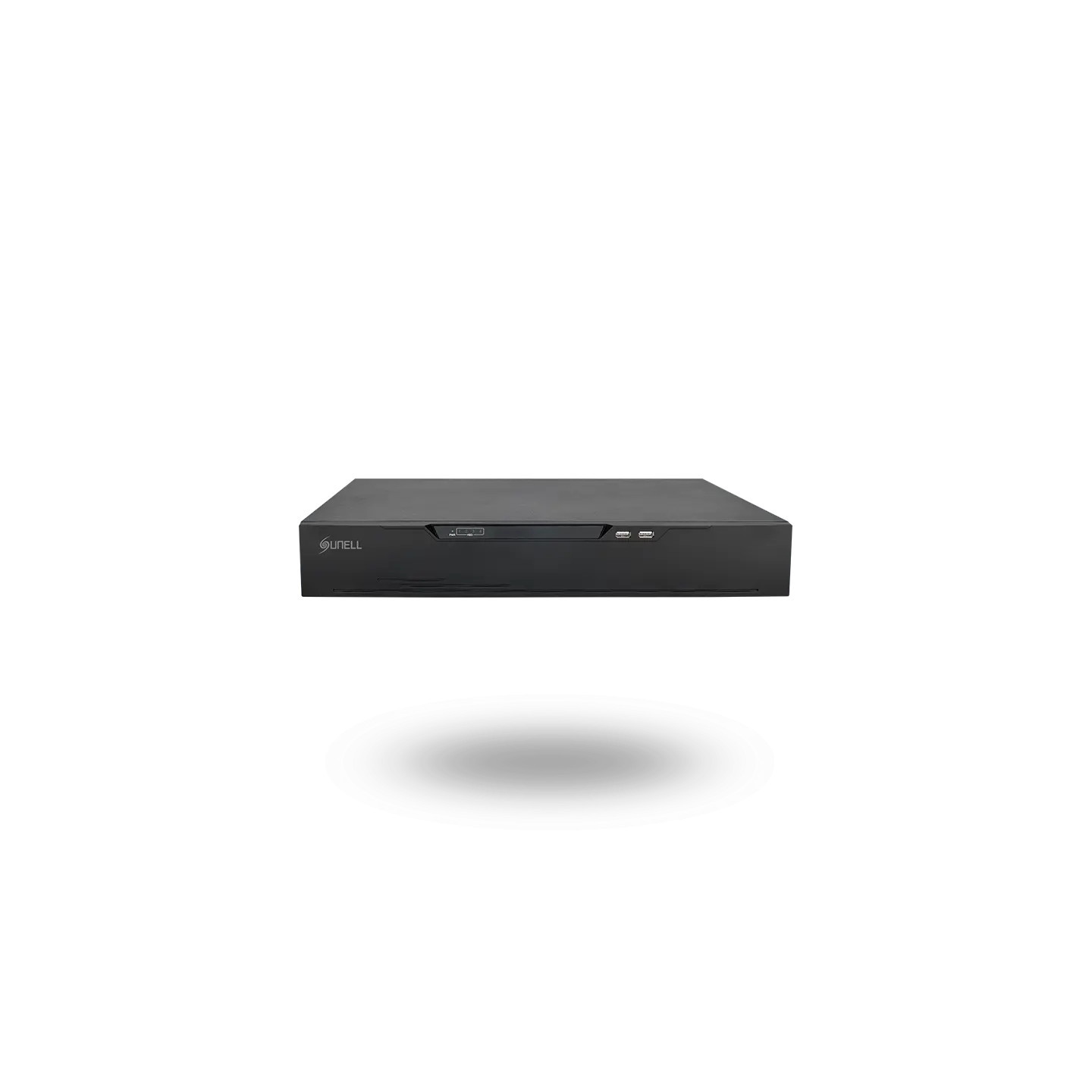

SUNELL SN-NVR3964E4-P16-J

Name: SUNELL SN-NVR3964E4-P16-J
Brand: SUNELL
SKU: SN-NVR3964E4-P16-J
Rating: 5 (1 reviews)

NVR SUNELL, 4HDD, 4K, PoE.

Contáctenos acerca de este producto

Acceso a cámaras IP de hasta 64 canales
Ancho de banda entrante/saliente de hasta 400 Mbps
Capacidad de decodificación de hasta 1 canal a 12 MP/4 canales a 8 MP/8 canales a 4 MP/16 canales a 1080P/32 canales a D1/64 canales a D1
Admite detección de máscaras, reconocimiento facial y reconocimiento de múltiples objetivos
Admite algunas cámaras especializadas, incluidas cámaras de conteo de personas, cámaras ANPR, cámaras ojo de pez, cámaras panorámicas y cámaras térmicas
Admite dewarping de ojo de pez y enlace de alarma VCA
Protección perimetral de hasta 4 canales
Interfaz de red 2 × RJ45 1000M, Plug & Play con interfaz PoE 16
Admite 2 interfaces HDMI y 1 VGA
Admite RAID 0/1/5/6/10

Detalle de productos

Descarga

sn-nvr3964e4-p16-j-datasheet

Hoja de Datos

Descarga: (364.24KB)

nvr-manual-web-operation-guide

Manual

Descarga: (19.29MB)

Video Input
IP Camera Input	64 Channel
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
Video Output
HDMI 1 Output	3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
HDMI 2 Output	1920 × 1080, 1280 × 1024, 1024 × 768
VGA Output	1920 × 1080, 1280 × 1024, 1024 × 768
Different Source Output	Support
Decoding Capacity	1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch D1, 64ch D1
Dual Stream	Support
Multi-screen Display	1st Screen: 1/4/8/9/16/32/36/64 2nd Screen: 1/4/8/9/16
AI Recognition
Face Comparison	Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)
Multi-objective	Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)
Smart Search	Time, Properties, Pictures, License plate
Trigger Events	Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.
Recording
Resolution	12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.
Recording Mode	Manual, Schedule (Regular, Continuous), Event
Trigger Events	Motion Detection, Video Loss, Alarm in, IVS
Playback and Backup
Sync Playback	16/9/4/1
Search Mode	Time /Date, Alarm, Picture grid, Event
Backup Mode	USB Device, Network, eSATA
Alarm
General Alarm	Motion Detection, Video Loss, Alarm in, Alarm out
Intelligent Analysis (By Camera)	Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave Area, etc.
Abnormal Alarm	Disk Alarm, IP Address Conflict, Network Disconnect
Intrusion Detection (By NVR)	4-ch, support the accurate detection of human and vehicle
Network
Network Function	HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Remote Users	8 users
P2P	Support
Interoperability	ONVIF, SDK, CGI
Storage
ANR	Support
Disk Group	Support
RAID	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Interface
HDD Interface	4 SATA interfaces, up to 16TB capacity for each disk
Network Interface	2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
PoE Interface	16 ports, 10/100Mbps, 802.3af/at, max 140W
eSATA	1 eSATA Interface
HDMI	2
VGA	1
Audio In/Out	1/1
Alarm In/Out	16/6
USB Interface	Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0
RS-485 Interface	1
RS-232 Interface	1
Reset Button	On-board reset button
General
Power Supply	100 to 240VAC
Power Consumption	< 15 W (without HDD)
Operating Conditions	-10 °C to 50 °C (14 °F to 122 °F)
Storage Conditions	Less than 90% RH
Certifications	CE/FCC
Dimensions	440 × 368.8 × 70 mm (17.32 × 14.52 × 2.76 inch)
Net Weight	4.8 kg (10.58 lb) without HDD
