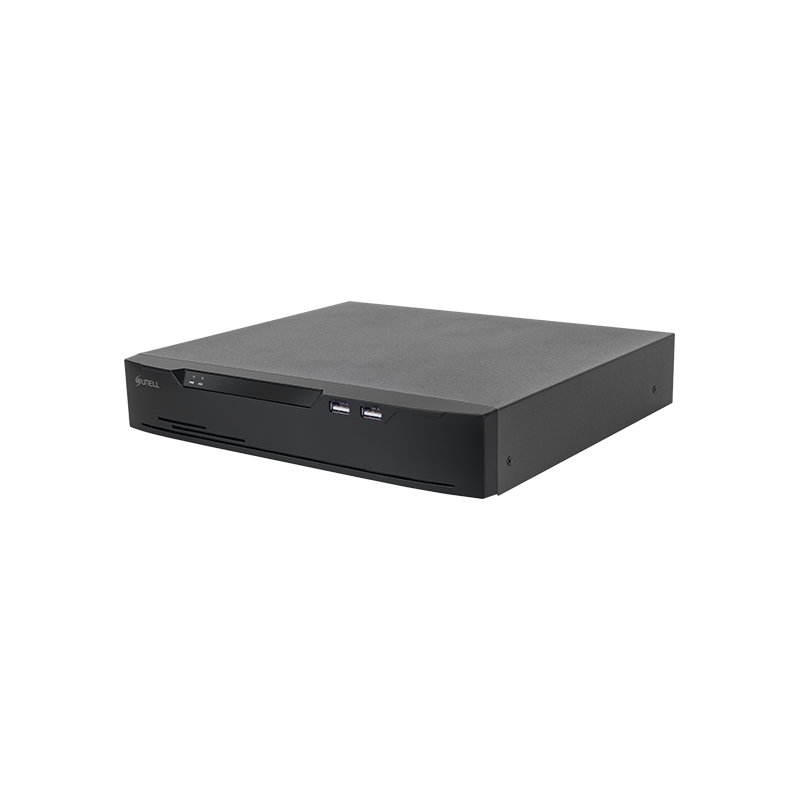

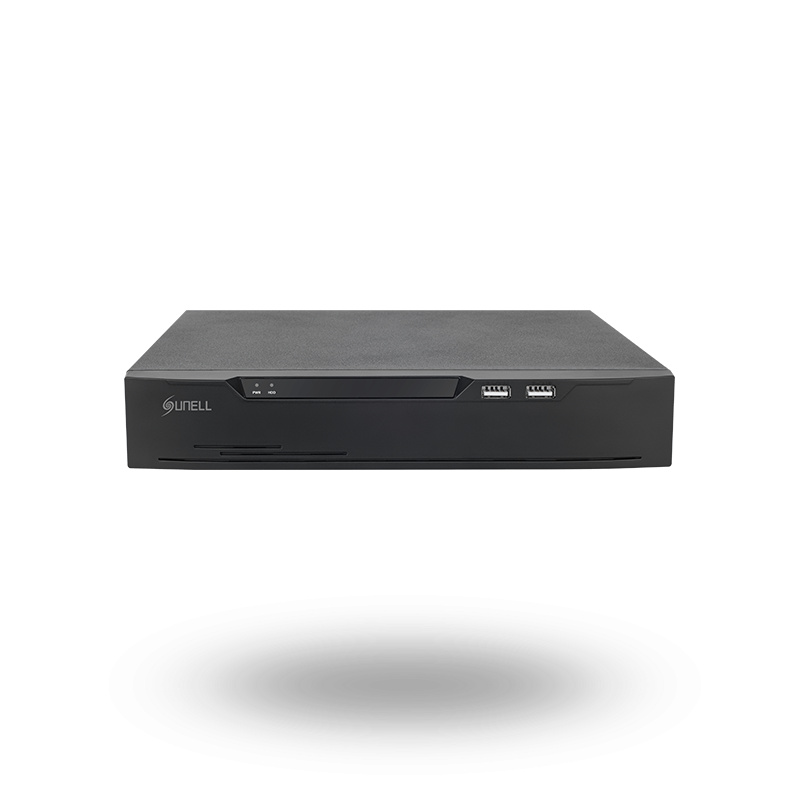

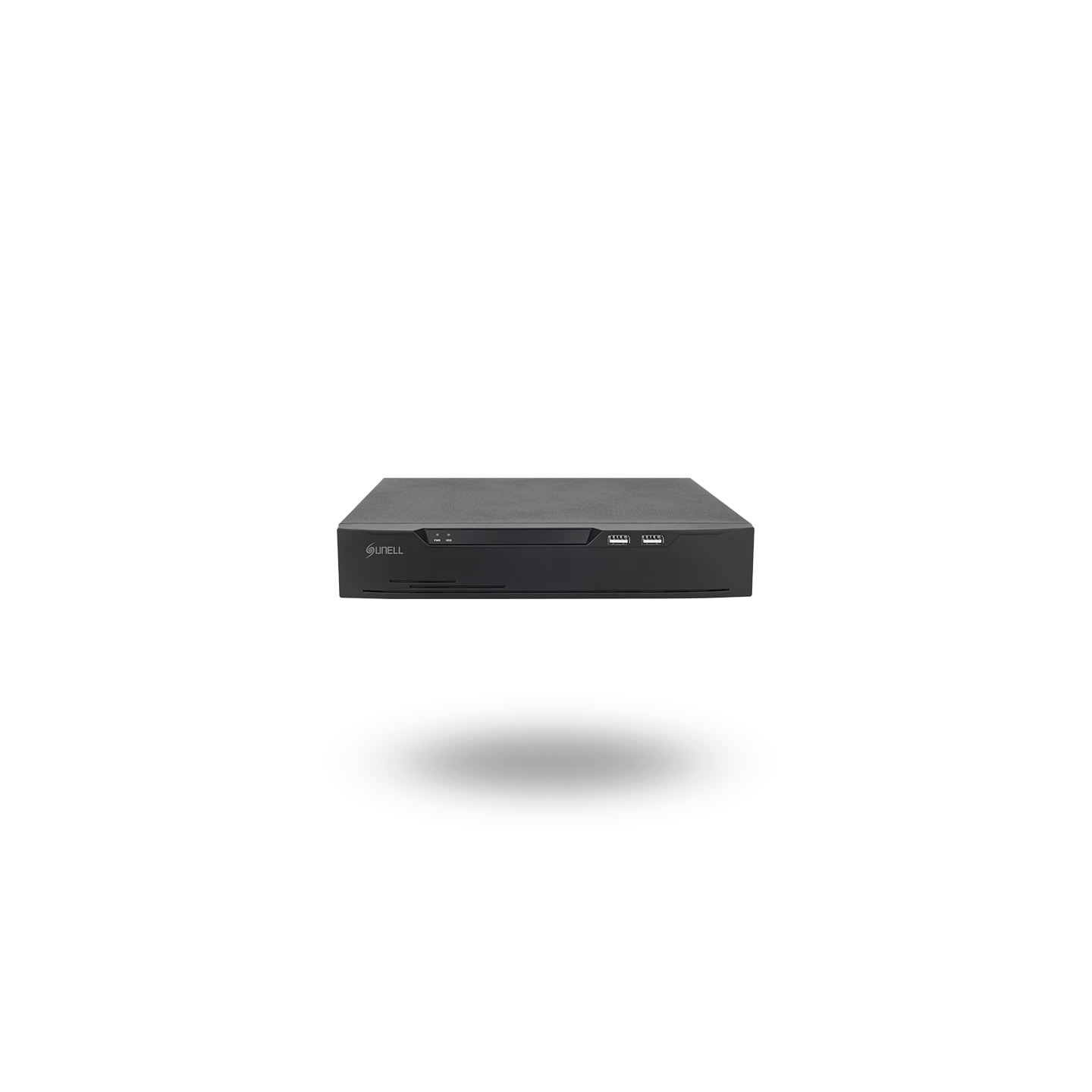

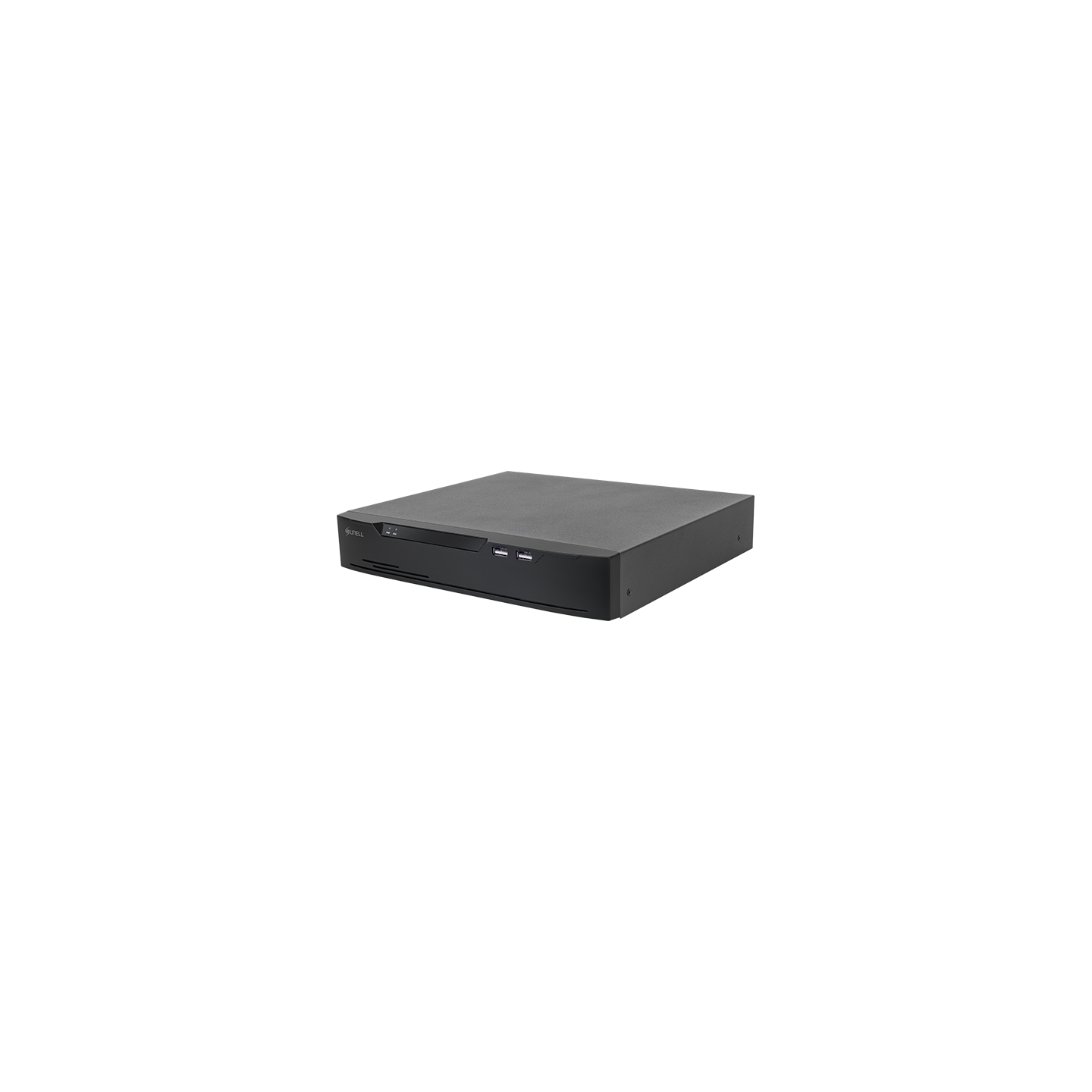

NVR de 4 canales y 1 disco duro con PoE de 4 canales
Video Input |
|
IP Camera Input |
4 Channel |
Incoming Bandwidth |
20 Mbps |
Outgoing Bandwidth |
20 Mbps |
Video Output |
|
HDMI Output |
3840×2160, 1920×1080, 1280×1024, 1024×768 |
VGA Output |
1920×1080, 1280×1024, 1024×768 |
Decoding Capacity |
1ch 4MP, 4ch 1080P@30fps |
Dual Stream |
Support |
Multi-screen Display |
1/4 |
Recording |
|
Resolution |
8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
Recording Mode |
Manual, Schedule (Regular, Continuous), Event |
Trigger Events |
Motion Detection, Video Loss, IVS |
Playback and Backup |
|
Sync Playback |
4/1 |
Search Mode |
Time /Date, Alarm, Picture grid, Event |
Backup Mode |
USB Device, Network |
Network |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
Remote Users |
8 users |
Smart Phone |
iPhone, iPad, Android |
Interoperability |
ONVIF, SDK |
Storage |
|
HDD |
1 SATA interface |
Capacity |
Up to 8TB for each HDD |
Interface |
|
Network Interface |
1 RJ-45 (10/100 Mbps) self-adaptive Ethernet port |
PoE |
4 Ports (IEEE 802.3af), 24W |
Audio I/O |
1ch Audio output |
USB |
2 ports (USB 2.0 × 2) |
HDMI |
1 |
VGA |
1 |
General |
|
Power Supply |
DC48V/1.35A |
Power Consumption |
< 5 W (without HDD) |
Operating Conditions |
-10 °C ~ 50 °C (14 °F ~ 122 °F) |
Storage Conditions |
Less than 90% RH |
Certifications |
CE/FCC |
Dimensions |
255 × 237 × 47.5 mm (10.04 × 9.33 × 1.87 inch) |
Net Weight |
0.9 kg (1.98 lb) without HDD |
