Radar Characteristics
Radar Sensor FMCW Radar
Radar Output Data Distance, direction, angle
Transmit Frequency 24.00~24.1GHz
Refresh Rate 8Hz
EIRP 39dBm
Power Consumption 17W
Detection Performance
Target Identification People, Vehicles
Recognition Pattern Radar triggers an alarm, linkage video review
Detection Range (Pedestrian) 1.5~450m
Detection Range (vehicle) 1~600m
Detection Accuracy ±0.75m
Detection Resolution 1.5m @human, 6m @ship
Speed Range 0.5m/s~30m/s
Speed Accuracy 0.006m/s
Speed Resolution 0.003m/s
Angle Accuracy ±1°
FOV Azimuth:90°；Elevation:13°
Hardware Characteristics
Communication Protocol UDP, TCP
Network Interface 1 RJ45 10M/100M (PoE)
RS485 Support
Physical Characteristics
Power Supply 12VDC/PoE (IEEE802.3af)
Working Temperature -40~75℃
Storage Temperature -40~85℃
Weight 1.0kg

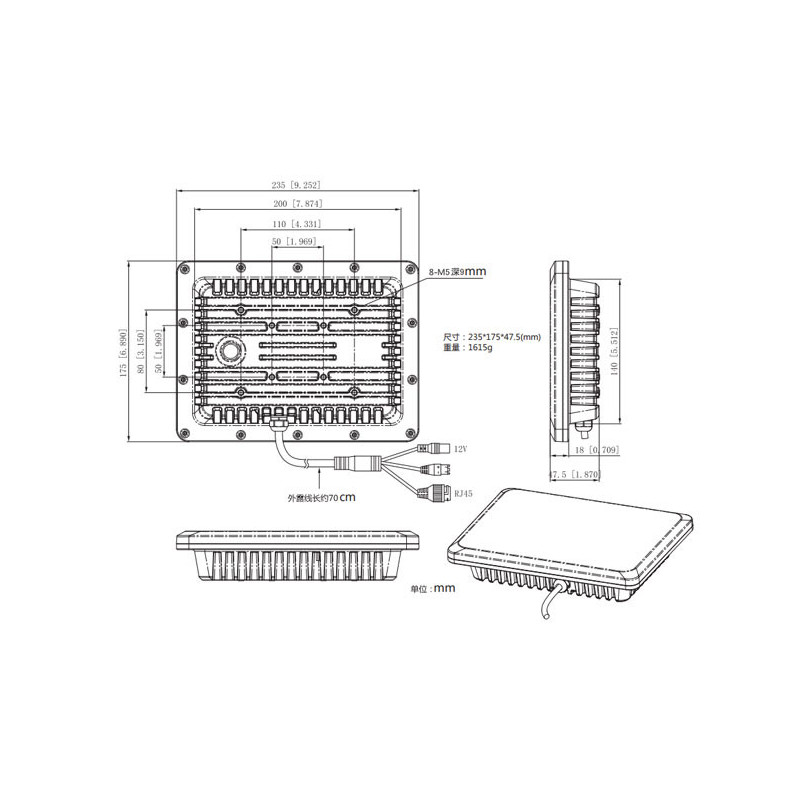

Dimension 235×175×47.5mm
Protection Class IP66
