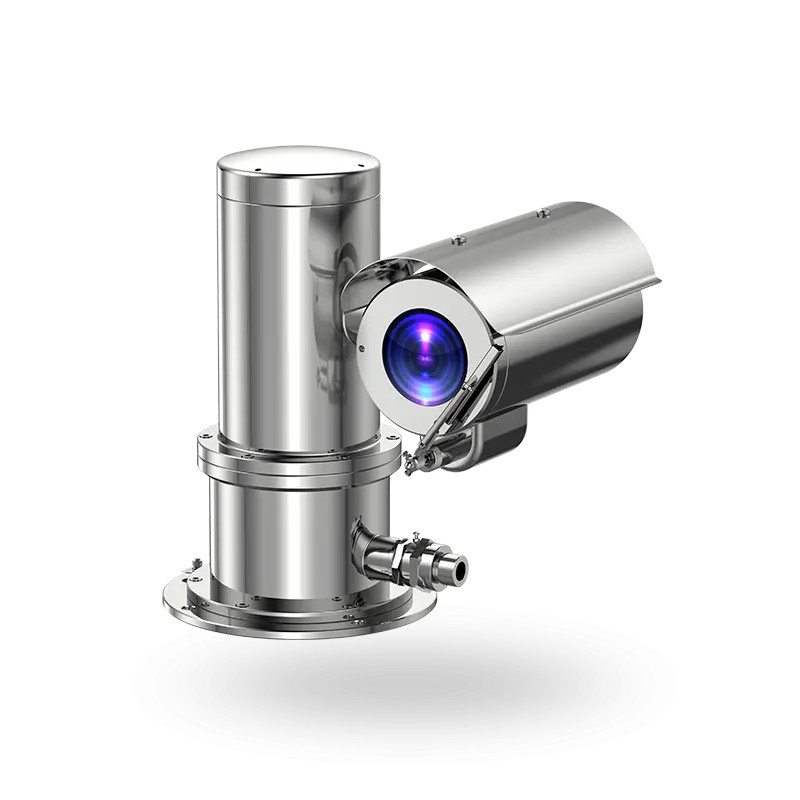

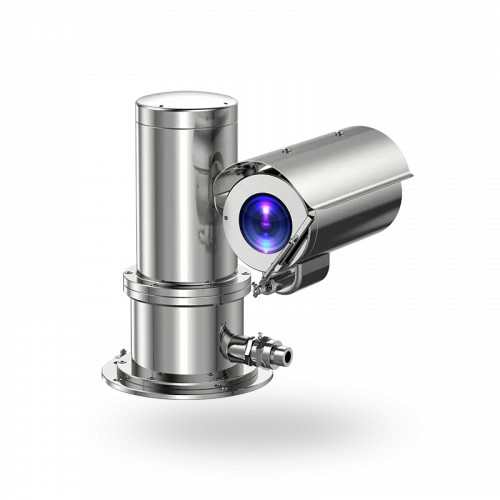

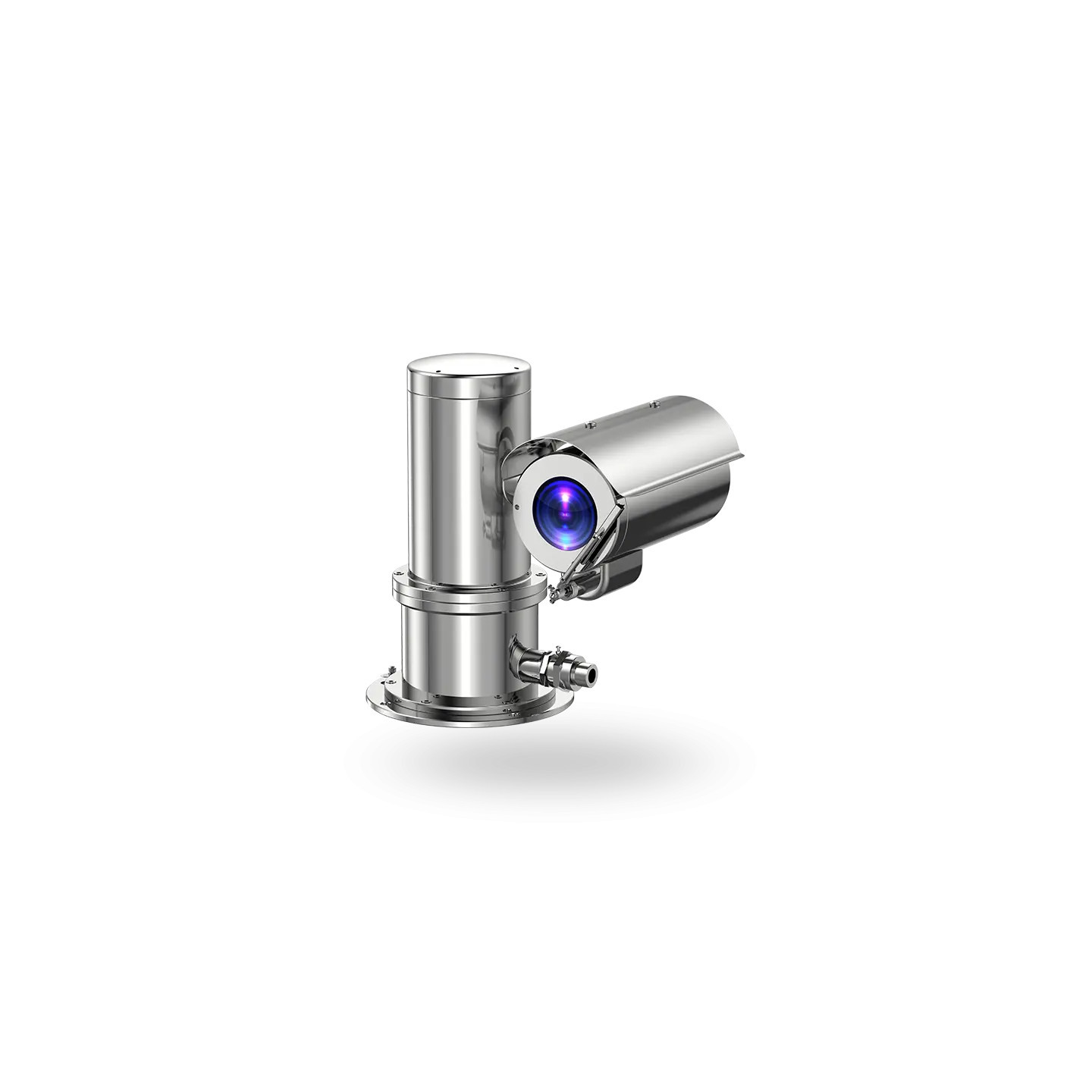

SUNELL SN-IPT8650PAN(-K)-Z30-SS

    SUNELL SN-IPT8650PAN(-K)-Z30-SS

    Cámara IP PTZ Antiexplosiva de 5 MP y 30X zoom óptico

    Contáctenos acerca de este producto

    Formulario de Contacto de SUNELL SN-IPT8650PAN(-K)-Z30-SS

    • CMOS STARVIS™ de 1/2,8"
    • Zoom óptico de 30x, zoom digital de 16x
    • Detección y captura de rostros, personas y vehículos, así como detección de humo y llamas.
    • Análisis inteligente: intrusión, cruce de línea simple, cruce de línea doble, merodeo, sentido contrario, estacionamiento ilegal y conteo de personas.
    • WDR real, 3D DNR, ICR, HLC, BLC, desempañador
    • -K: Compatible con interfaz de fibra óptica
    • Material: Acero inoxidable 316L, resistencia al agua IP68
    • ATEX: II 2 G Ex db IIC T6 Gb, Ex II 2 D Ex tb IIIC T80 °C Db

    Detalle de productos

    Camera

    Image Sensor

    1/2.8”Progressive Scan CMOS

    Max. Resolution

    5MP, 2592(H) × 1944(V)

    Min. illumination

    Color: 0.07 Lux @ (F1.6, AGC ON), B/W: 0.02 Lux @ (F1.6, AGC ON)

    Electronic Shutter

    Auto/Manual, 1/5 to 1/100,000s

    Day & Night

    Auto (ICR)

    Wide Dynamic Range

    True WDR

    Wiper

    Support

    Lens

    Focal Length

    5.3 to 159 mm, 30x Optical Zoom

    Max. Aperture

    F1.6 to F4.3

    Angle of View

    H: 56.3° to 2.7°, V: 42.4° to 2.0°

    Zoom Speed

    Approx. 2.5 s

    Digital Zoom

    16x

    Iris Control

    Auto/Manual

    Focus Control

    Auto/Manual/Semi-automatic

    DORI Distance

    Detection

    104 to 3,120 m (341.2 to 10,236.2 ft)

    Observe

    41.6 to 1,248 m (136.5 to 4,094.5 ft)

    Recognize

    20.8 to 624 m (68.2 to 2,047.2 ft)

    Identify

    10.4 to 312 m (34.1 to 1,023.6 ft)

    DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

    Intelligent Analytics

    Multi-Object Detection

    Support face, human, vehicle detection and capture

    Smoke and Flame   Detection

    Support

    Intelligent Analysis

    Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion Detection

    (support the accurate detection of vehicle and human)

    People Counting

    Support

    Smart Tracking

    Support

    Video and Audio

    Streaming Capability

    3 Streams

    Stream/Frame Rate

    Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

    Stream2: D1, VGA, CIF @25/30fps

    Stream3: VGA, CIF, QVGA @25/30fps

    Bit Rate Control

    CBR/VBR

    Bit Rate

    Stream1: 200 kbps to 12 Mbps

    Stream2: 100 kbps to 6 Mbps

    Stream3: 100 kbps to 3 Mbps

    Smart Encoder

    Support

    Region of Interest (ROI)

    Support

    Audio Compression

    G.711 A-law, G.711 μ-law, RAW_PCM

    Audio Bit Rate

    64 kbps (G.711), 128 kbps (RAW_PCM)


    Image Adjustment

    Brightness, Sharpness, Contrast, Saturation adjustable

    Scene Setting

    Indoor, Outdoor, Mirror

    Exposure Mode

    Auto, Manual, Shutter priority, Iris priority

    White Balance

    Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

    Day/Night Setting

    Auto, Day, Night, Timer

    Noise Reduction

    2D/3D DNR

    Image Enhancement

    HLC, BLC, Defog, WDR, Anti-shake

    Privacy Masking

    Support 40 zones, mask color configurable

    PTZ

    Pan/Tilt Range

    Pan: 0° to 360°  endless, Tilt:-90° to +90°

    Pan Speed

    Pan speed: 0.1°  to 30°/s, preset speed: 30°/s

    Tilt Speed

    Tilt speed: 0.1°  to 20°/s, preset speed: 30°/s

    Presets

    400

    Patrol Scan

    6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

    Power-Off Memory

    Support

    3D Positioning

    Support

    PTZ Status Display

    Support

    Idle Motion

    The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

    Event

    Alarm Triggers

    IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

    Event Action

    Alarm record, SMTP upload, FTP upload, Alarm output, Audible alarm output

    Network

    Protocols

    IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

    Interoperability

    ONVIF (Profile S/T/G/M), SDK, CGI

    User/Host Level

    Up to 10 users, 3 levels: Administrator, Operator, Media user

    Security

    IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

    Web Viewer

    <IE11, Chrome, Firefox, Microsoft Edge

    Interface

    Network Interface

    1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

    Fiber Optical

    -K: 1 single module fiber interface

    Audio Interface

    1ch Input, 1ch Output

    Alarm Interface

    5ch Input, 2ch Output

    RS-485

    Support

    CVBS Interface

    Support

    SD Card Slot

    Built-in, up to 256GB

    Reset Button

    Built-in

    General

    Language

    English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

    Power Supply

    100 to 240VAC

    Power Consumption

    Less than 75W

    Operating Temperature

    -40°C to 60°C (-40°F to 140 °F)

    Operating Humidity

    Less than 90% RH

    Ingress Protection

    IP68

    Certifications

    ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80°C Db;

    IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

    Material

    SUS316L

    Dimensions

    390 × 295 × 420 mm (15.35 × 11.61 × 16.54 inch)

    Net Weight

    30 kg (66.14 lb)
