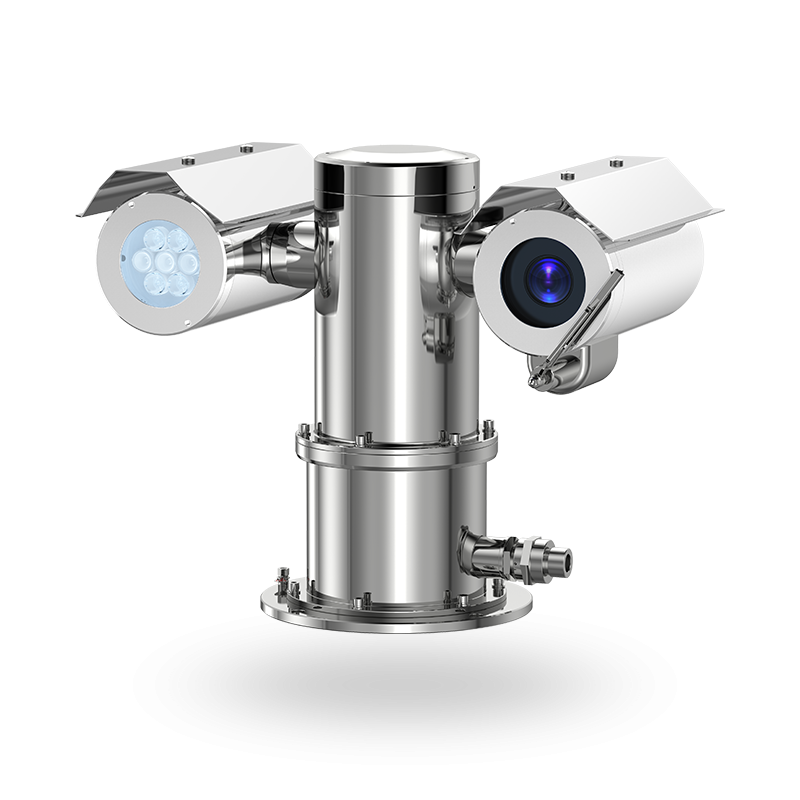

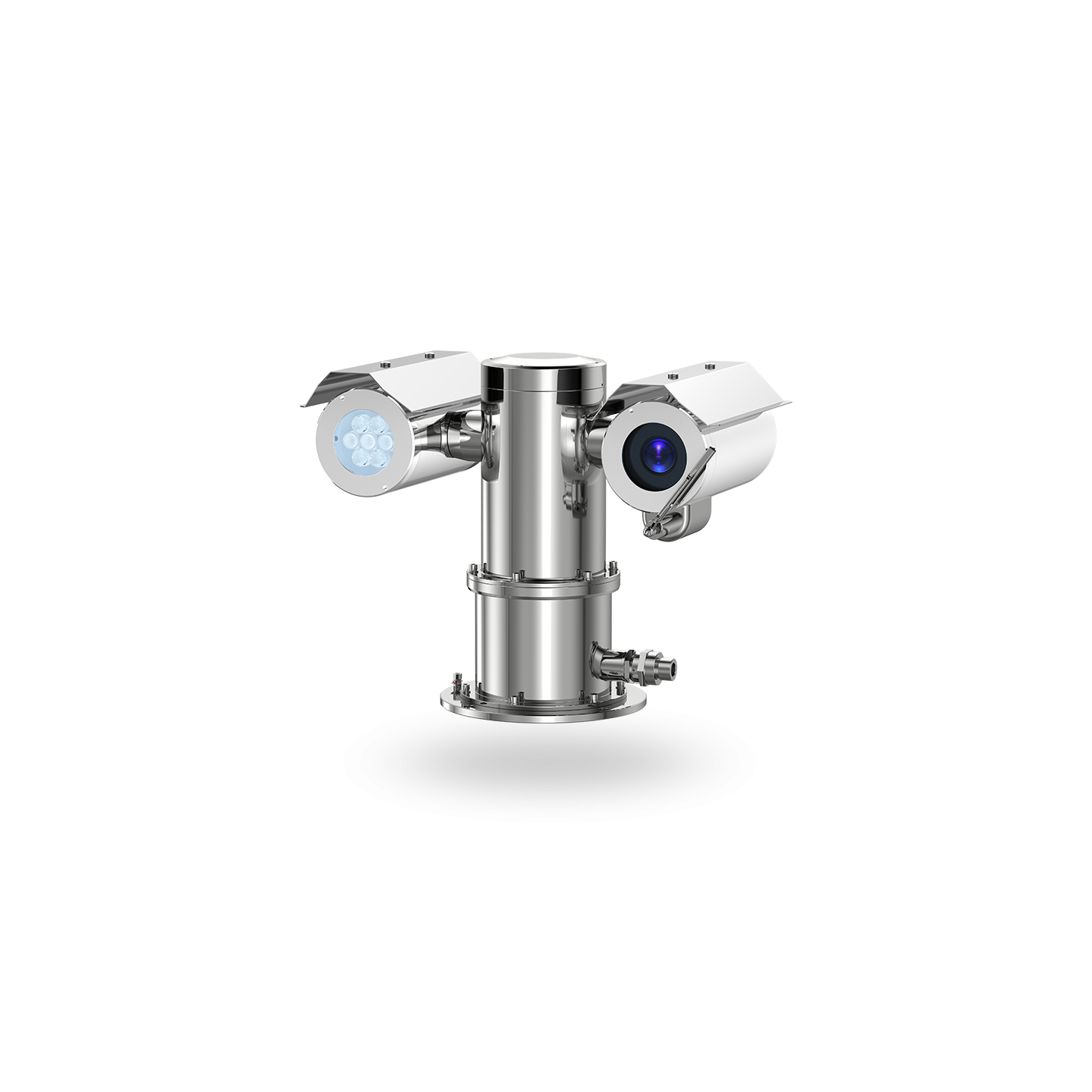

SUNELL SN-IPT8641PAR(-K)-Z40-SS
Cámara IP PTZ Antiexplosiva de 5 MP, 40X zoom óptico, IR 200m
- CMOS STARVIS™ de 1/1.8"
- Zoom óptico de 40x, zoom digital de 16x
- Detección y captura de rostros, personas y vehículos, así como detección de humo y llamas.
- Análisis inteligente: intrusión, cruce de línea simple, cruce de línea doble, merodeo, sentido contrario, estacionamiento ilegal y conteo de personas.
- WDR real, 3D DNR, ICR, HLC, BLC, desempañador
- Distancia infrarroja de hasta 200 m
- -K: Compatible con interfaz de fibra óptica
- Material: Acero inoxidable 316L, resistencia al agua IP68
- ATEX: II 2 G Ex db IIC T6 Gb, Ex II 2 D Ex tb IIIC T80 °C Db
Detalle de productos
Camera |
|
|
Image Sensor |
1/1.8”Progressive Scan CMOS |
|
Max. Resolution |
4MP, 2592(H) × 1520(V) |
|
Min. illumination |
Color: 0.001 Lux @ (F1.5, AGC ON), B/W: 0.0005 Lux @ (F1.5, AGC ON), 0 Lux with IR |
|
Electronic Shutter |
Auto/Manual, 1/5 to 1/20,000s |
|
Day & Night |
Auto (ICR) |
|
Wide Dynamic Range |
True WDR |
|
Wiper |
Support |
Lens |
|
|
Focal Length |
5.3 to 212 mm, 40x Optical Zoom |
|
Max. Aperture |
F1.5 to F4.8 |
|
Angle of View |
H: 60.4° to 2.5°, V: 36.5° to 1.5° |
|
Zoom Speed |
Approx. 2.5 s |
|
Digital Zoom |
16x |
|
Iris Control |
Auto/Manual |
|
Focus Control |
Auto/Manual/Semi-automatic |
DORI Distance |
|
|
Detection |
95 to 3,515 m (311.68 to 11,532.15 ft) |
|
Observe |
38 to 1,406 m (124.67 to 4,612.86 ft) |
|
Recognize |
19 to 703 m (62.34 to 2,306.43 ft) |
|
Identify |
9.5 to 351.5 m (31.17 to 1,153.22 ft) |
|
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. |
|
Illuminator |
|
|
Illuminator Type |
IR |
|
Illumination Distance |
Up to 200m |
|
Illumination On/Off Control |
Auto/Manual |
Intelligent Analytics |
|
|
Multi-Object Detection |
Support face, human, vehicle detection and capture |
|
Smoke and Flame Detection |
Support |
|
Intelligent Analysis |
Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion Detection (support the accurate detection of vehicle and human) |
|
People Counting |
Support |
|
Smart Tracking |
Support |
Video and Audio |
|
|
Streaming Capability |
3 Streams |
|
Stream/Frame Rate |
Stream1: 2592×1520, 2304×1296, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @25/30fps Stream3: VGA, CIF, QVGA @25/30fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Stream1: 200 kbps to 16 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
|
Smart Encoder |
Support |
|
Region of Interest (ROI) |
Support |
|
Audio Compression |
G.711 A-law, G.711 μ-law, RAW_PCM |
|
Audio Bit Rate |
64 kbps (G.711), 128 kbps (RAW_PCM) |
Image |
|
|
Image Adjustment |
Brightness, Sharpness, Contrast, Saturation adjustable |
|
Scene Setting |
Indoor, Outdoor, Mirror |
|
Exposure Mode |
Auto, Manual, Shutter priority, Iris priority |
|
White Balance |
Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
|
Day/Night Setting |
Auto, Day, Night, Timer |
|
Noise Reduction |
2D/3D DNR |
|
Image Enhancement |
HLC, BLC, Defog, WDR, Anti-shake |
|
Privacy Masking |
Support 40 zones, mask color configurable |
PTZ |
|
|
Pan/Tilt Range |
Pan: 0° to 360° endless, Tilt:-90° to +90° |
|
Pan Speed |
Pan speed: 0.1° to 30°/s, preset speed: 30°/s |
|
Tilt Speed |
Tilt speed: 0.1° to 20°/s, preset speed: 30°/s |
|
Presets |
400 |
|
Patrol Scan |
6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol) |
|
Power-Off Memory |
Support |
|
3D Positioning |
Support |
|
PTZ Status Display |
Support |
|
Idle Motion |
The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run. |
Event |
|
|
Alarm Triggers |
IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
|
Event Action |
Alarm record, SMTP upload, FTP upload, Alarm output, Audible alarm output |
Network |
|
|
Protocols |
IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
|
Interoperability |
ONVIF (Profile S/T/G/M), SDK, CGI |
|
User/Host Level |
Up to 10 users, 3 levels: Administrator, Operator, Media user |
|
Security |
IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x |
|
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
Interface |
|
|
Network Interface |
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
Fiber Optical |
-K: 1 single module fiber interface |
|
Audio Interface |
1ch Input, 1ch Output |
|
Alarm Interface |
5ch Input, 1ch Output |
|
RS-485 |
Support |
|
CVBS Interface |
Support |
|
SD Card Slot |
Built-in, up to 1TB |
|
Reset Button |
Built-in |
General |
|
|
Language |
English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
|
Power Supply |
100 to 240VAC |
|
Power Consumption |
Less than 75W |
|
Operating Temperature |
-40°C to 60°C (-40°F to 140 °F) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP68 |
|
Certifications |
ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80°C Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db |
|
Material |
SUS316L |
|
Dimensions |
530 × 295 × 420 mm (20.87 × 11.61 × 16.54 inch) |
|
Net Weight |
38 kg (83.78 lb) |
