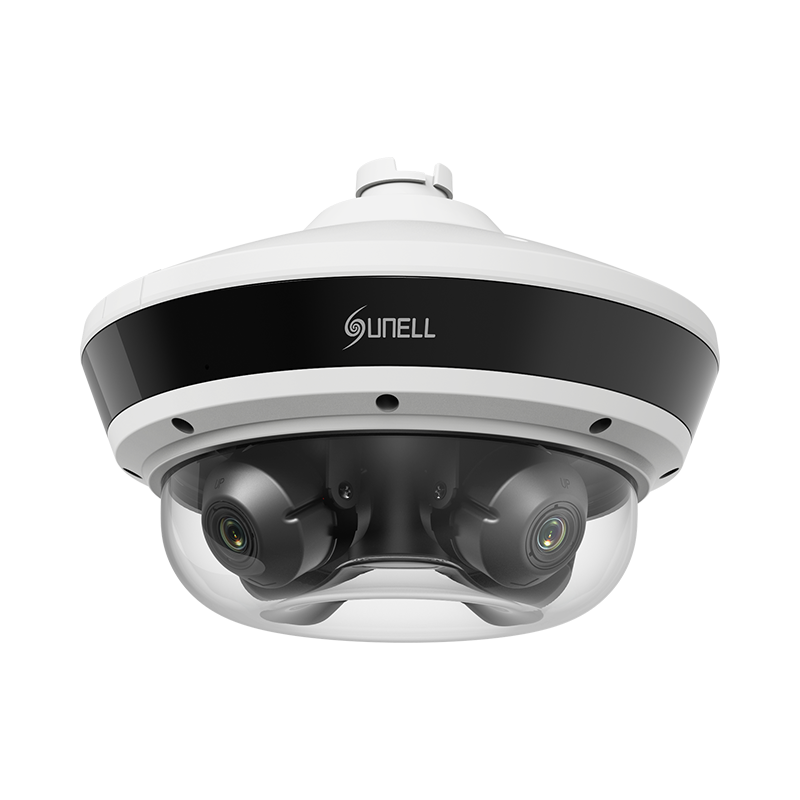

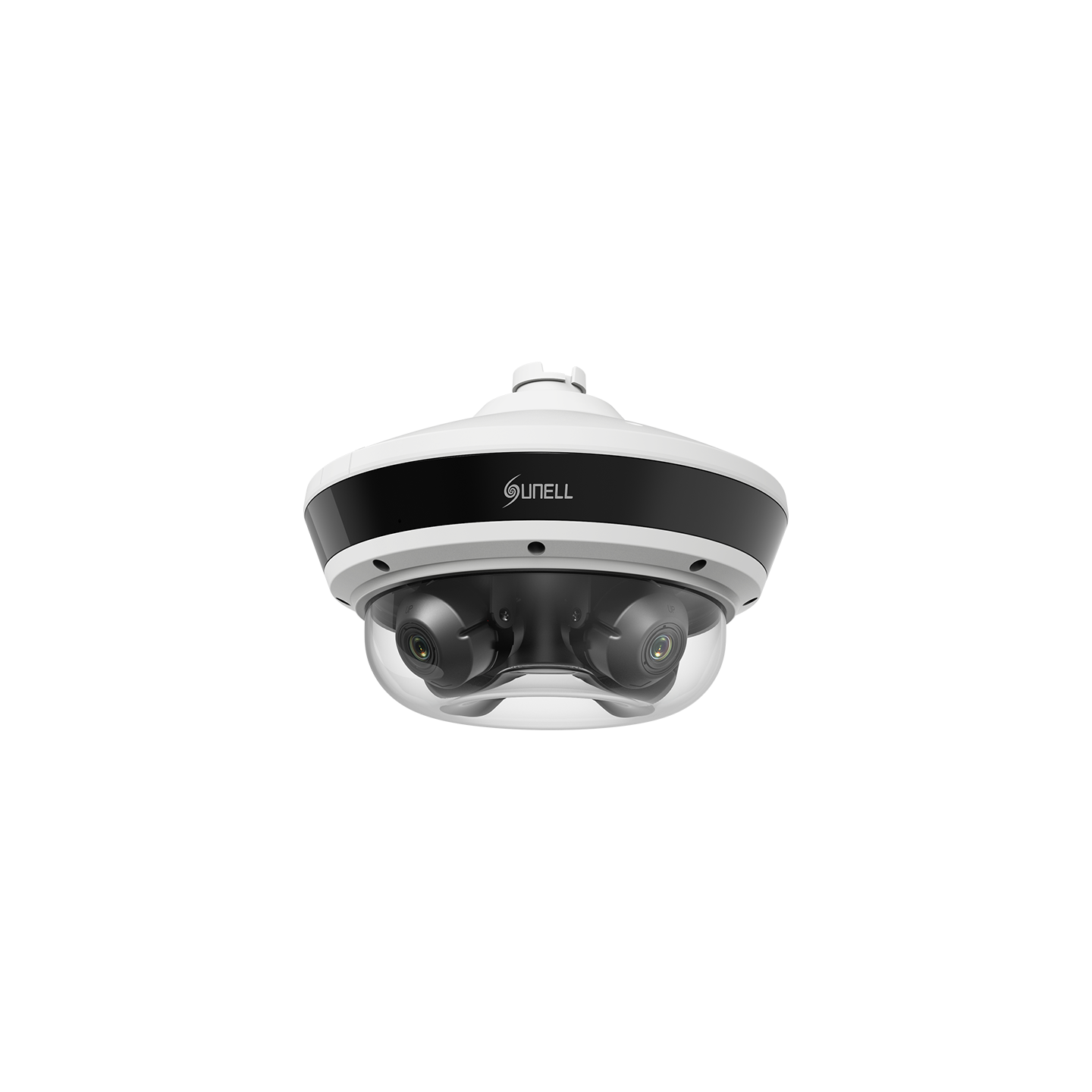

SUNELL SN-IPP8058RAR-VZ

Cámara de seguridad IP multisensor de 4 × 5MP y 4 direcciones

Cuatro sensores de imagen CMOS STARVIS de 5MP y 1/2,8"
4 lentes ajustables en una cámara, cada lente de hasta 5 MP (2592 × 1944) @ 25/30 fps
Lente motorizada de 2,7 a 13,5 mm
WDR verdadero, 3D DNR, ROI, HLC, BLC, Defog
Admite detección y captura de rostros, humanos y vehículos
Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, merodeo, sentido contrario, estacionamiento ilegal, área de entrada, área de salida y detección inteligente de movimiento y conteo de personas
Micrófono incorporado, entrada/salida de audio 1/1, entrada/salida de alarma 4/2
Ranura para tarjeta SD incorporada, hasta 1 TB
Distancia IR inteligente de hasta 40 m
IP67, IK10

Camera
Image Sensor	4 × 1/2.8” Progressive Scan CMOS
Max. Resolution	5MP, 2592(H) × 1944(V)
Electronic Shutter	Auto/Manual, 1/5 to 1/20,000s
Min. illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Wide Dynamic Range	True WDR
Angle Adjustment	Pan: -180˚ to 180˚, Tilt: 0˚ to 130˚, Rotation: 0˚ to 355˚
Lens
Lens Type	Varifocal lens, Motorized focal
Iris	DC- Iris
Focal Length	2.7 to 13.5 mm
Max. Aperture	F1.6
Field of View (FOV)	H: 95.6° to 26.9°, V: 65.4° to 20.5°
DORI Distance
Detect	68 to 195 m (223.1 to 639.8 ft)
Observe	27.2 to 78 m (89.2 to 255.9 ft)
Recognize	13.6 to 39 m (44.6 to 128.0 ft)
Identify	6.8 to 19.5 m (22.3 to 19.5 ft)
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
Illuminator
Illuminator Type	IR
Illumination Distance	IR distance up to 40 m (131.2 ft)
Illumination On/Off Control	Auto/Manual
IR Wavelength	850 nm
Intelligent Analytics
Multi-Object Detection	Supports face, human, vehicle detection and capture. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic.
Intelligent Analysis	Intrusion, Smart motion detection, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, Enter area, and Leave area Support alarm triggering by specified target types (human and vehicle)
People Counting	Support
Video and Audio
Streaming Capability	3 Streams
Stream/Frame Rate	Stream1: 2592 × 1944, 2592 × 1520, 1920 × 1080, 1280 × 720 @ 25/30fps Stream2: D1, VGA, CIF @ 25/30fps Stream3: VGA, CIF, QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 200 kbps to 12 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps
Smart Encoder	Support
Region of Interest (ROI)	Support
Audio Compression	G.711 A-law, G.711 μ-law, RAM PCM
Audio Bit Rate	64 Kbps (G.711), 128 Kbps (RAW_PCM)
Image Adjustment	Brightness, Sharpness, Contrast, Saturation adjustable
Scene Setting	Indoor, Outdoor, Mirror, Corridor Mode
Exposure Mode	Auto, Manual, Shutter priority
White Balance	Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual
Day/Night Setting	Auto, Day, Night, Timer
Noise Reduction	2D/3D DNR
Image Enhancement	WDR, HLC, BLC, Defog
Privacy Masking	Up to 4 × 4 areas
Event
Alarm Triggers	IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection
Event Actions	Alarm record, FTP upload, SMTP upload, Alarm output, Audible alarm output
Network
Protocols	IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast
Interoperability	ONVIF (Profile S/T/G/M), SDK, CGI
Max Concurrent Streams	10 channels
User/Host Level	32+ users, 3 levels: Administrator, Operator, Media user
Security	IP address filter, HTTPS, Illegal login lock, IEEE 802.1x
Web Viewer	<IE11, Chrome, Firefox, Microsoft Edge
Interface
Network Interface	1 Ethernet (100/1000 Base-T) RJ-45 Connector
Built-in Microphone	Support
Audio Interface	1ch Input, 1ch Output
Alarm Interface	4ch Input, 2ch Output
RS-485	1 RS-485
CVBS Interface	1 BNC interface
SD Card Slot	Built-in, up to 1 TB
Reset Button	Support
General
Language	English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English
Power Supply	12 VDC (-15% to +25%) / PoE+ (802.3at)
Power Consumption	Typical: 10.8 W (12 VDC) / approx. 13.5 W (PoE) Max (IR on): 20.2 W (12 VDC) / approx. 25.3 W (PoE)
Operating Temperature	-40°C to 60°C (-40°F to 140°F )
Operating Humidity	Less than 90% RH
Ingress Protection	IP67, IK10
Certifications	CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B
Material	Aluminum alloy body, bubble: plastic
Dimensions	Φ282 × 206.3 mm (φ11.1 × 8.12 inch) , (Bracket not included)
