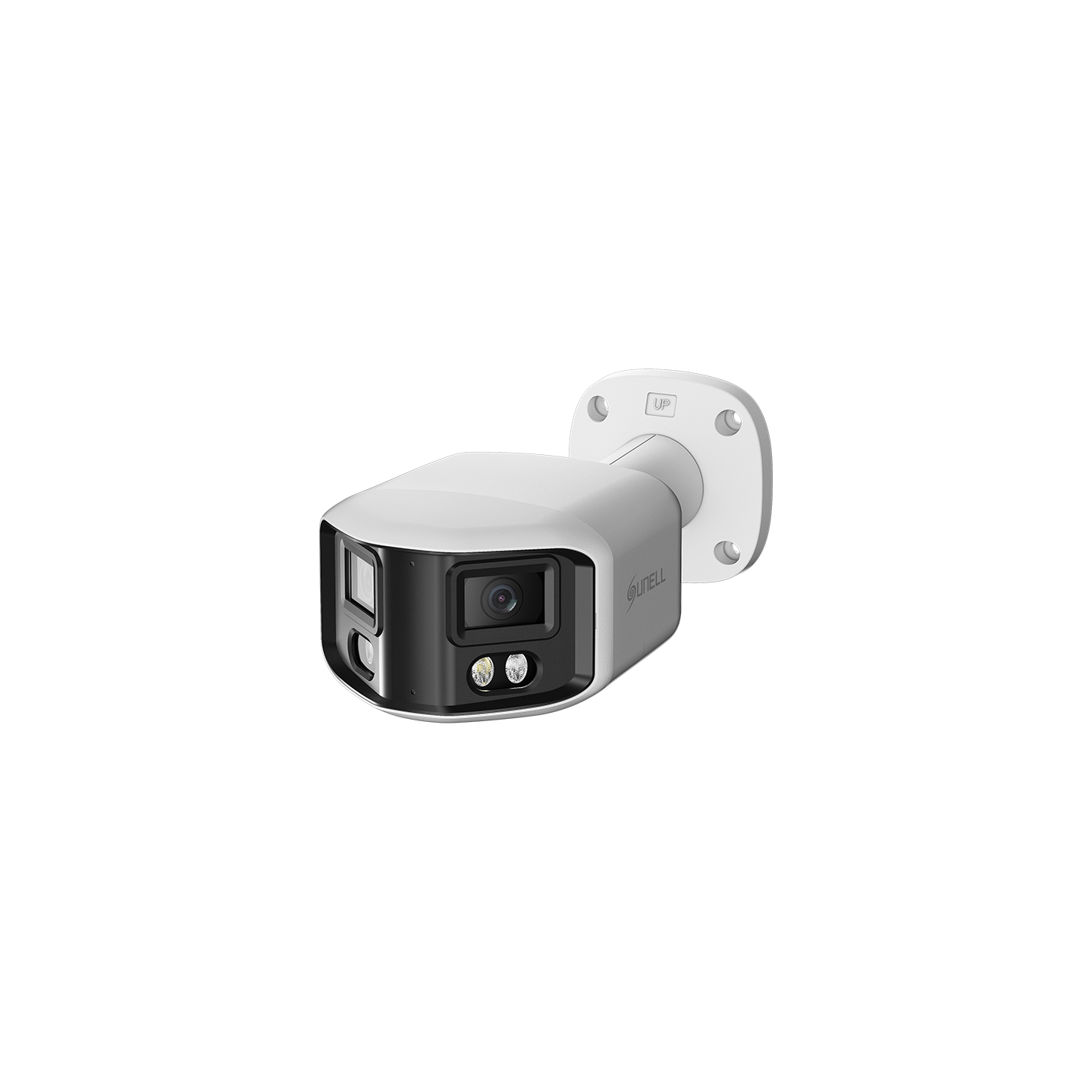

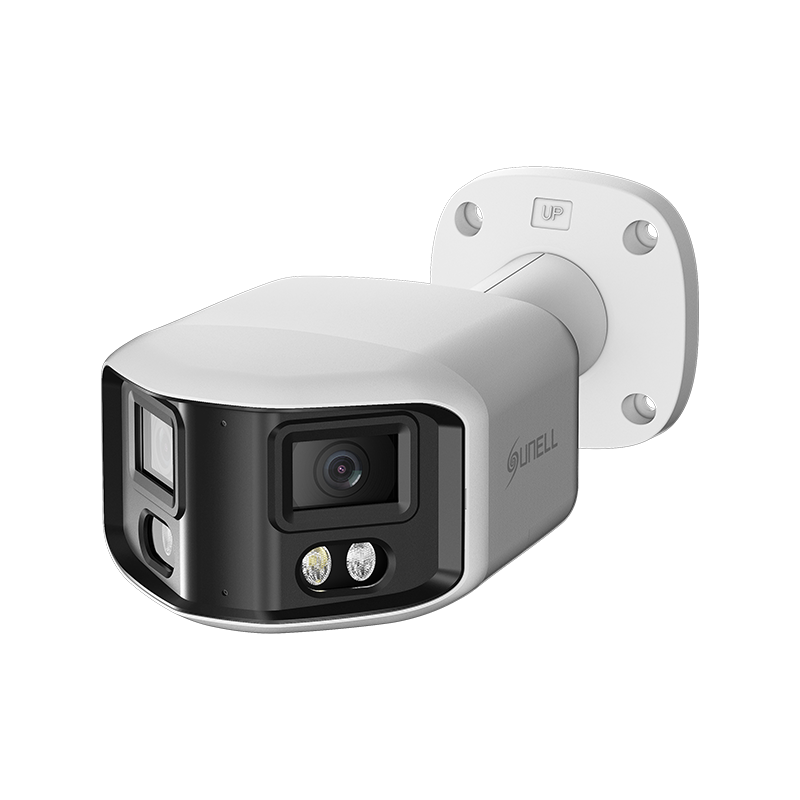

SUNELL SN-IPP8086QAS-B
Cámara de seguridad IP panorámica tipo bala de doble sensor de 8MP
- CMOS STARVIS STARVIS™ de 2×5MP 1/2.8"
- Salida de imagen de empalme gran angular de 180°
- Salidas máx. 8MP (4224×1848) @ 25/30 fps y admite 2592 × 1944 @ 25 / 30 fps
- Apoyar la detección y captura de personas y vehículos
- Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, merodeo, sentido contrario, detección inteligente de movimiento, conteo de personas y mapa de calor
- True WDR, 3D DNR, ROI, Defog, HLC
- Luz cálida incorporada y luz infrarroja, la distancia máxima de iluminación de hasta 30 m (98,4 pies)
- Audio: 1 canal de entrada, 1 canal de salida; micrófono y altavoz incorporados; Apoya la conversación bidireccional
- Alarma: 1ch in, 1ch out; ranura para tarjeta SD incorporada, hasta 1 TB
- IP66
|
Camera |
|
|
Image Sensor |
Dual 1/2.8” Progressive Scan CMOS |
|
Max. Resolution |
8MP, 4224(H) × 1848(V) |
|
Electronic Shutter |
Auto/Manual, 1/5 to 1/100,000s |
|
Min. illumination |
Color: 0.01 Lux @ (F1.6, AGC ON) B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with light on |
|
Day & Night |
Auto (ICR) |
|
Angle Adjustment |
Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚ |
|
Lens |
|
|
Lens Type |
Fixed-focal lens, Dual lens |
|
Iris |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
Max. Aperture |
F1.6 |
|
Field of View (FOV) |
H: 185.8°, V: 65.3° |
|
DORI Distance |
|
|
Detect |
66 m (216.5 ft) |
|
Observe |
26.4 m (86.6 ft) |
|
Recognize |
13.2 m (43.3 ft) |
|
Identify |
6.6 m (21.7 ft) |
|
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. |
|
|
Illuminator |
|
|
Illuminator Type |
2 (IR LED), 2 (Warm Light) |
|
Illumination Distance |
IR distance up to 30 m (98.4 ft) Warm light distance up to 20 m (65.6 ft) |
|
Illumination Control |
IR mode, White mode, Intelligent mode, None |
|
IR Wavelength |
850 nm |
|
Intelligent Analytics |
|
|
Multi-Object Detection |
Supports face, human, vehicle detection and capture. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
|
Intelligent Analysis |
Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, and Smart motion detection. Support alarm triggering by specified target types (human and vehicle). |
|
People Counting |
Support |
|
Heat Map |
Support |
|
Video and Audio |
|
|
Streaming Capability |
3 Streams |
|
Stream/Frame Rate |
Splicing mode: - Stream1: 4224×1848, 3072×1760, 3072×1536, 2880×1440, 2560×1280, 2048×1024 @ 25/30fps - Stream2: 1920×832, 1536×576 @ 25/30fps - Stream3: 1920×832, 1280×560 @25/30fps Multi-channel mode: - Stream1: 2592×1944,2592×1520, 1920×1080,1280×720 @25/30fps, - Stream2: D1, VGA, CIF, QVGA @ 25/30fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Splicing mode: - Stream1: 500 kbps to 16 Mbps - Stream2: 200 kbps to 8 Mbps - Stream3: 200 kbps to 8 Mbps Multi-channel mode: - Stream1: 200 kbps to 16 Mbps - Stream2: 100 kbps to 6 Mbps |
|
Smart Encoder |
Support |
|
Region of Interest (ROI) |
Support |
|
Audio Compression |
G.711 A-law, G.711 μ-law, RAM PCM |
|
Audio Bit Rate |
64 Kbps (G.711), 128 Kbps (RAW_PCM) |
|
Image |
|
|
Image Adjustment |
Brightness, Sharpness, Contrast, Saturation adjustable |
|
Scene Setting |
Indoor, Outdoor |
|
Exposure Mode |
Auto, Manual, Shutter priority |
|
White Balance |
Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
|
Day/Night Setting |
Auto, Day, Night, Timer |
|
Noise Reduction |
2D/3D DNR |
|
Image Enhancement |
WDR, HLC, BLC, Defog |
|
Privacy Masking |
Support |
|
Event |
|
|
Alarm Triggers |
IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
|
Events Actions |
Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, White light alarm output |
|
Network |
|
|
Protocols |
IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
|
Interoperability |
ONVIF (Profile S/T/G/M), SDK, CGI |
|
Max Concurrent Streams |
10 channels |
|
User/Host Level |
32+ users, 3 levels: Administrator, Operator, Media user |
|
Security |
IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
|
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
|
Interface |
|
|
Network Interface |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Built-in Microphone |
Support |
|
Built-in Speaker |
Support |
|
Audio Interface |
1ch Input, 1ch Output |
|
Alarm Interface |
1ch Input, 1ch Output |
|
SD Card Slot |
Built-in, up to 1 TB |
|
Reset Button |
Support |
|
General |
|
|
Language |
English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
|
Power Supply |
12 VDC (-15% to +20%) / PoE (802.3af) |
|
Power Consumption |
Max. 4 W (without IR) Max. 11.5 W (IR on + Speaker) |
|
Operating Temperature |
-40°C to 60°C (-40°F to 140°F ) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Certifications |
CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
|
Material |
Metal |
|
Dimensions |
227.7 × 110 × 80 mm (8.96 × 4.33 × 3.15 inch) |
|
Net Weight |
0.82 kg (1.81 lb) |
